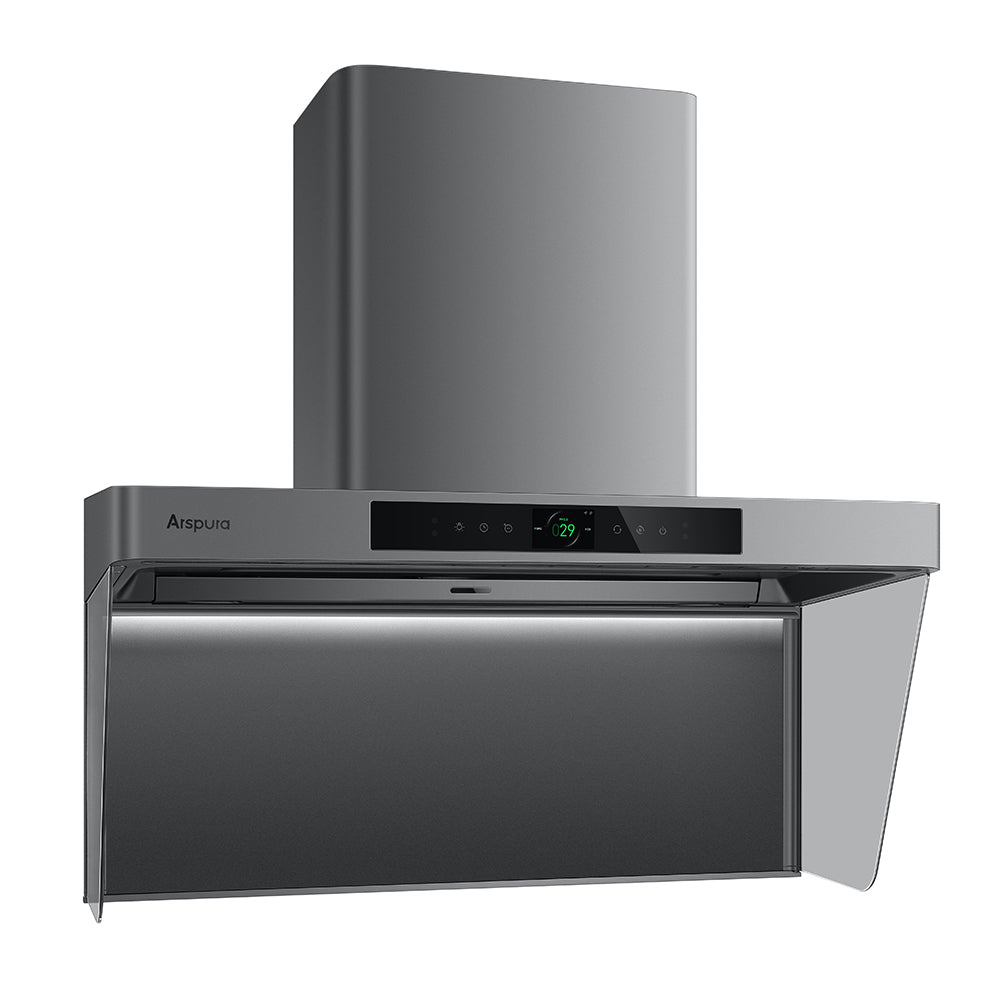

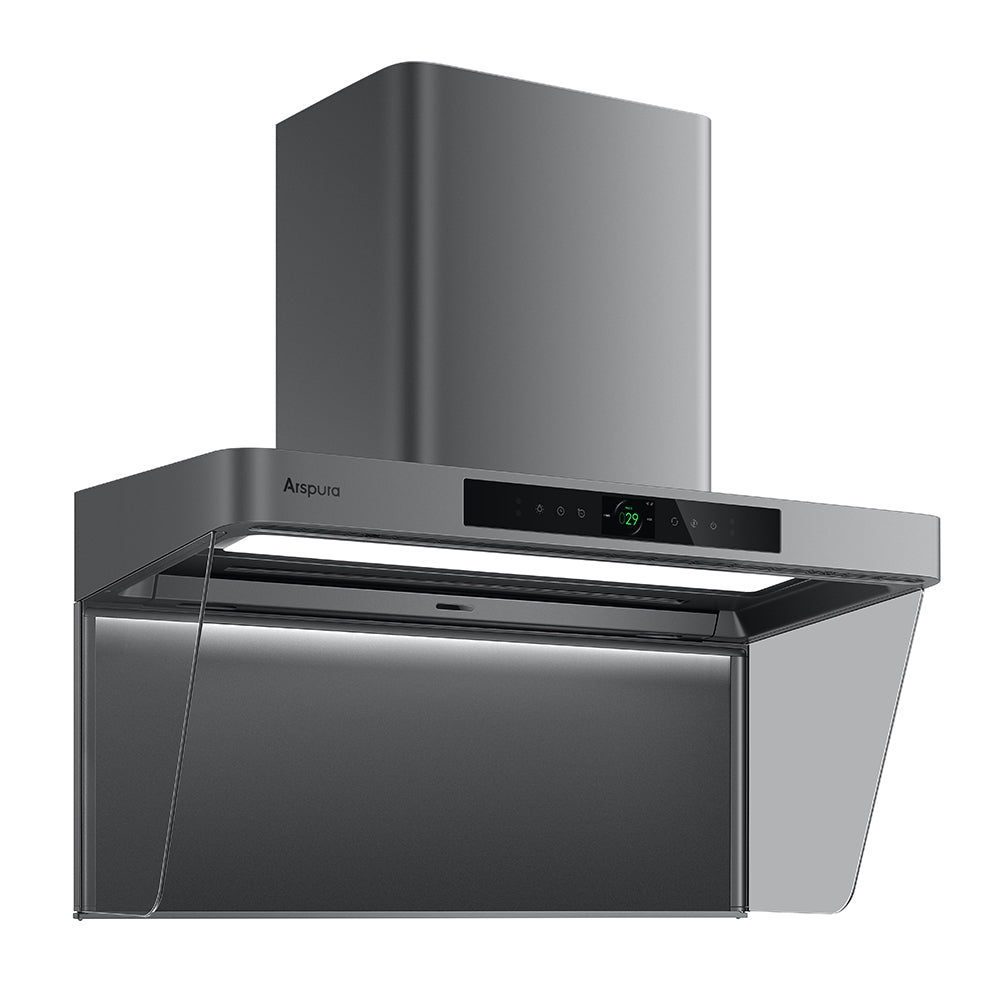

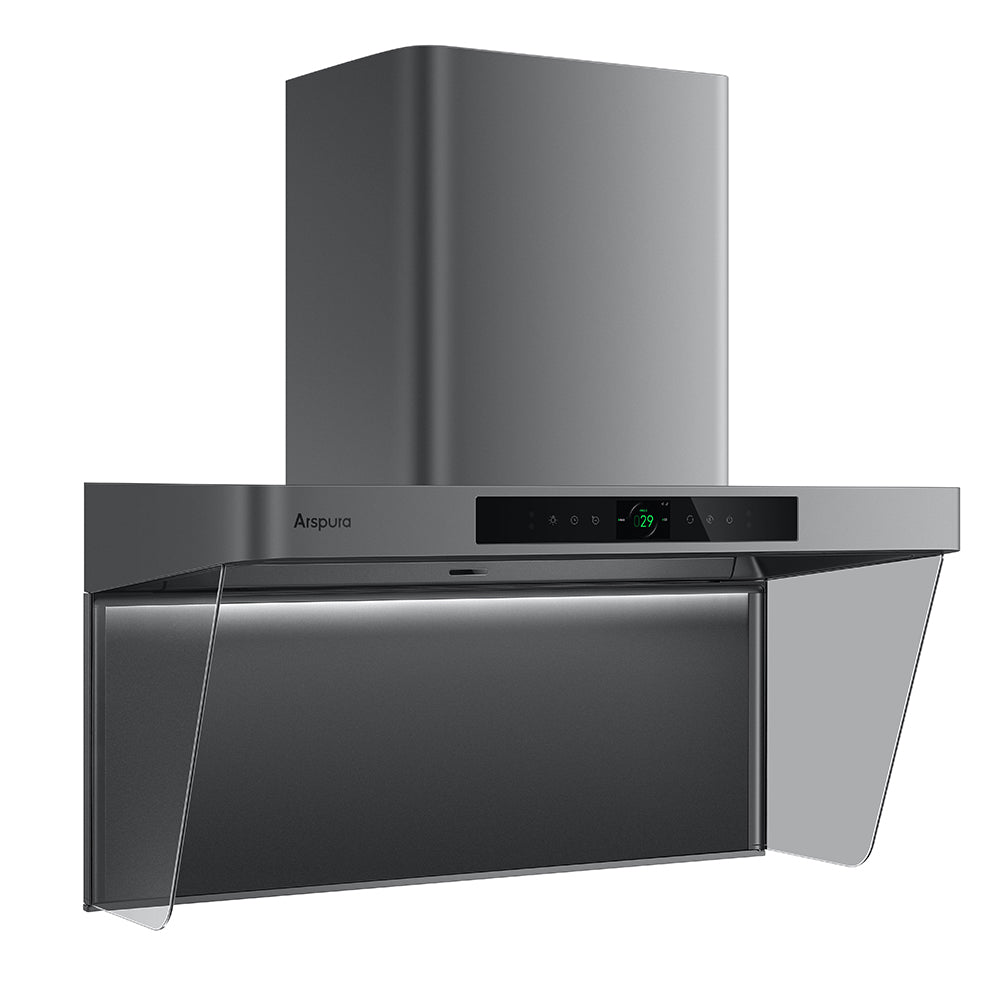

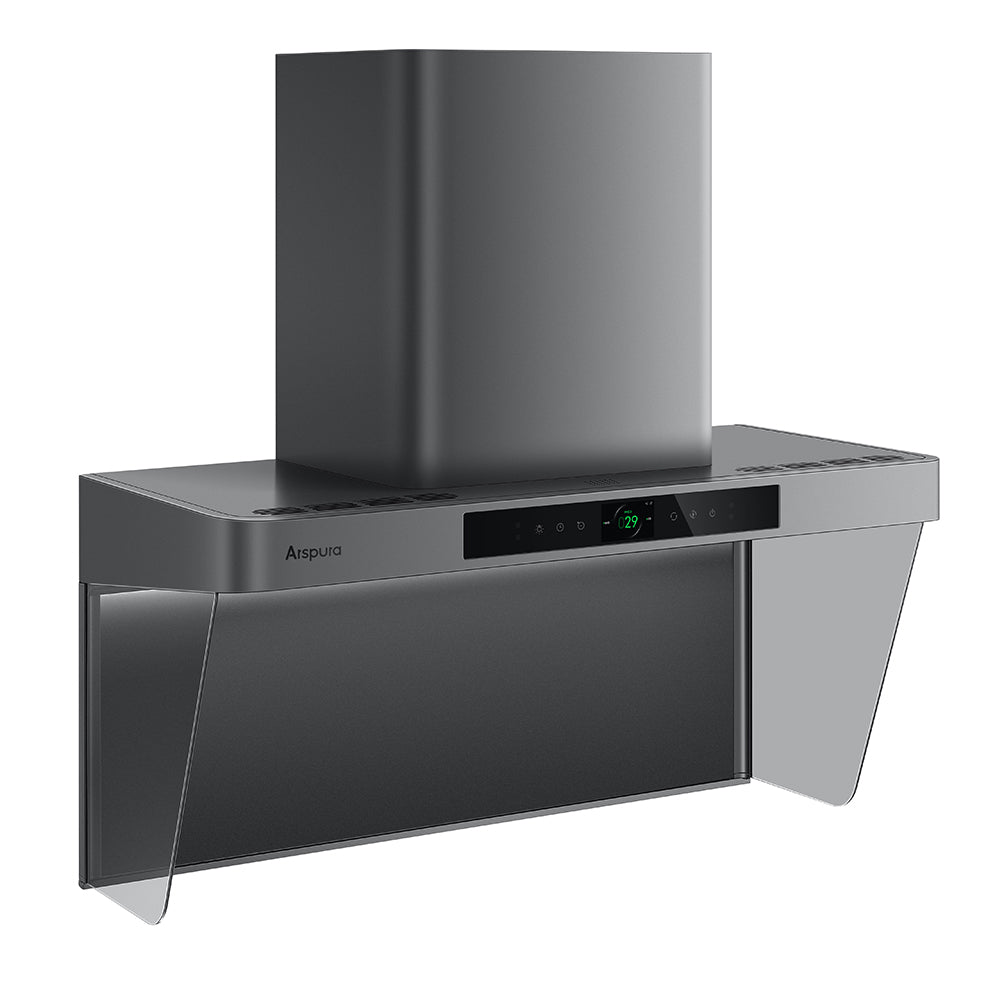

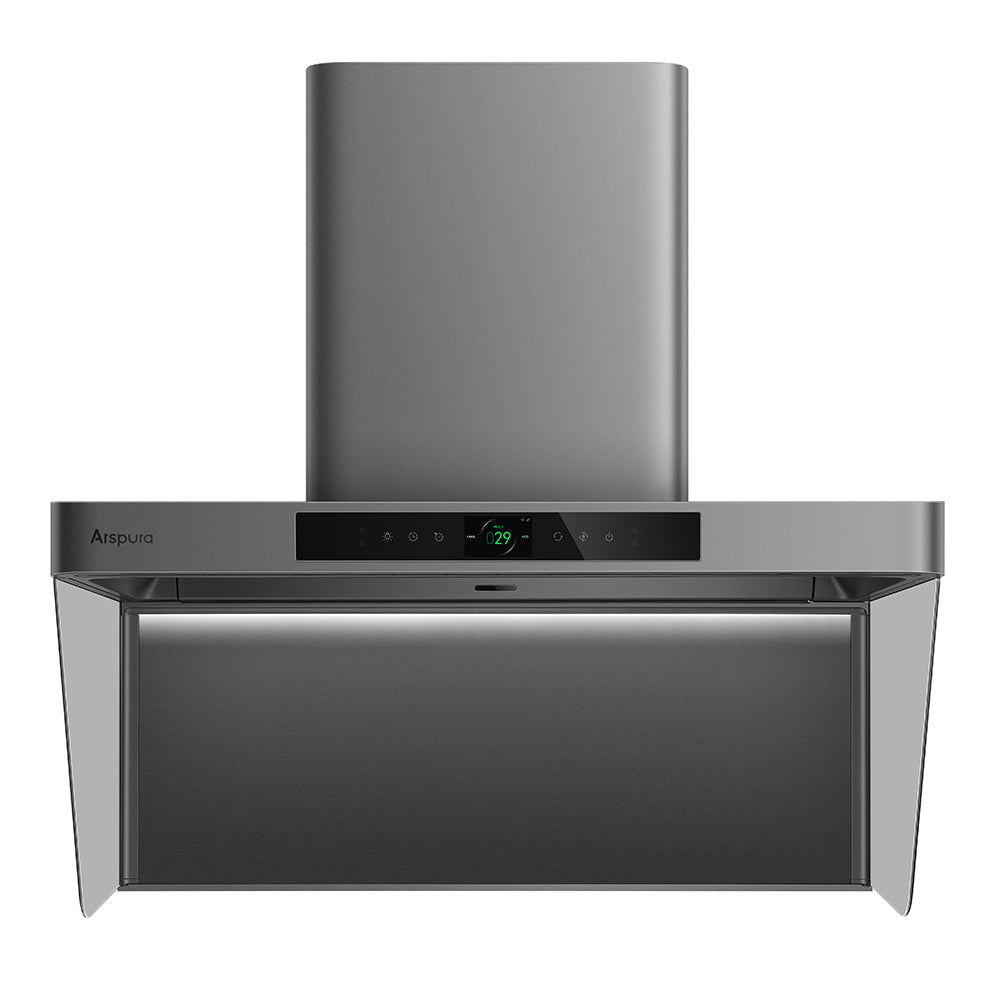

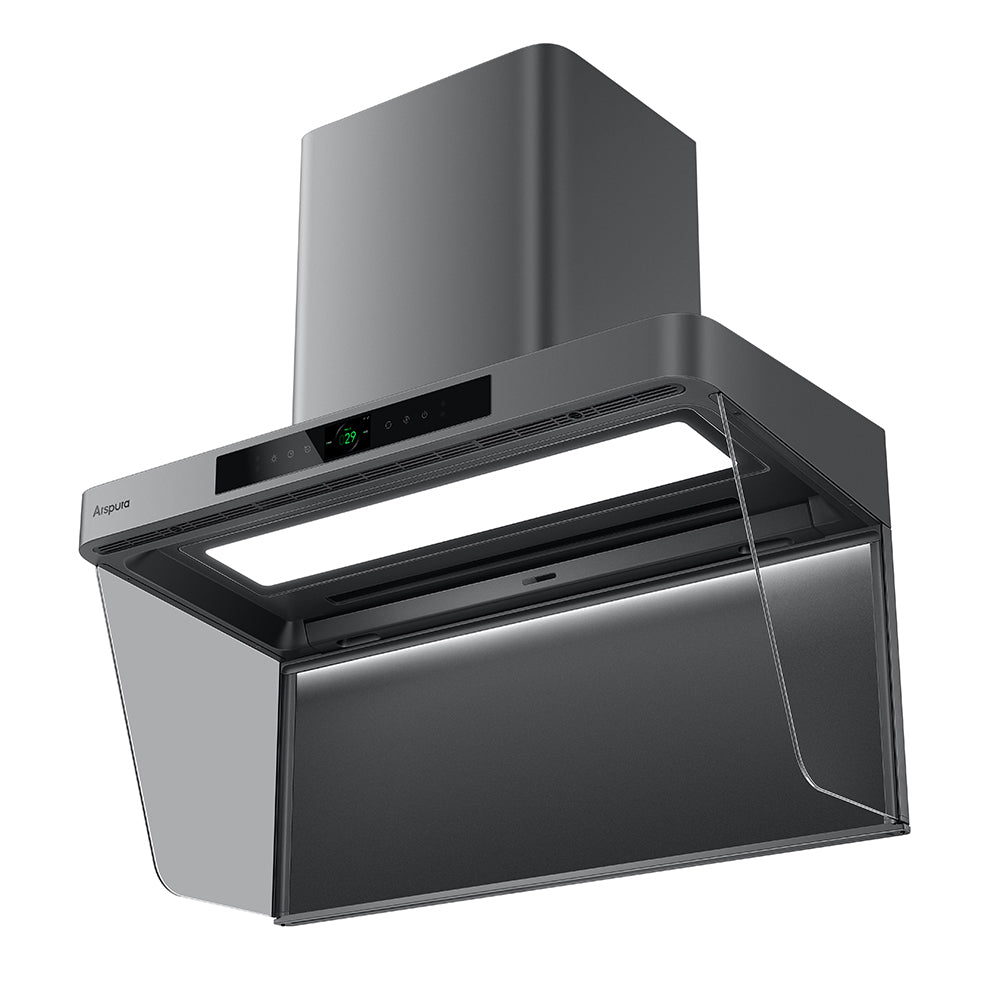

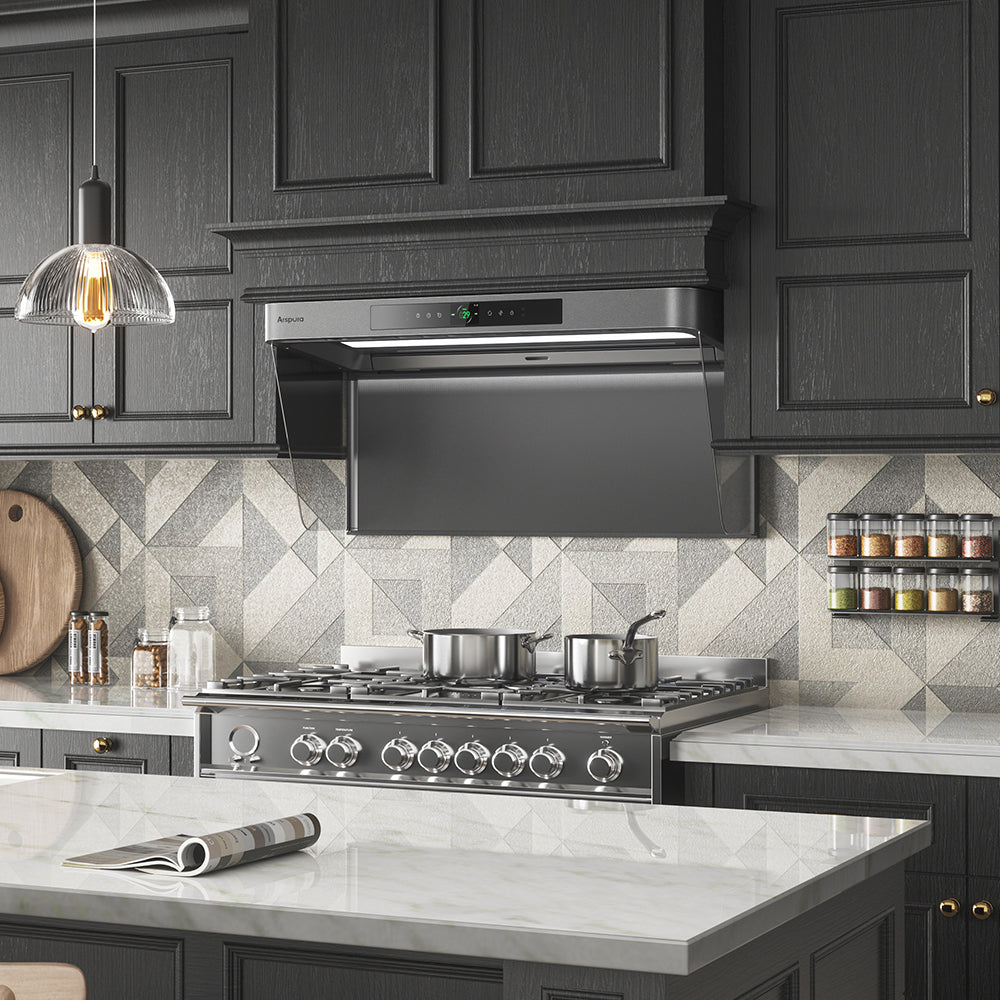

Arspura 36 inches P2 IQV™ Range Hood
Arspura 36 inches P2 IQV™ Range Hood
- Sized for a 36-inch stove, wall-mounted or under the cabinet
- No mesh filter to scrub. Grease sits on the glass and a cloth takes it off

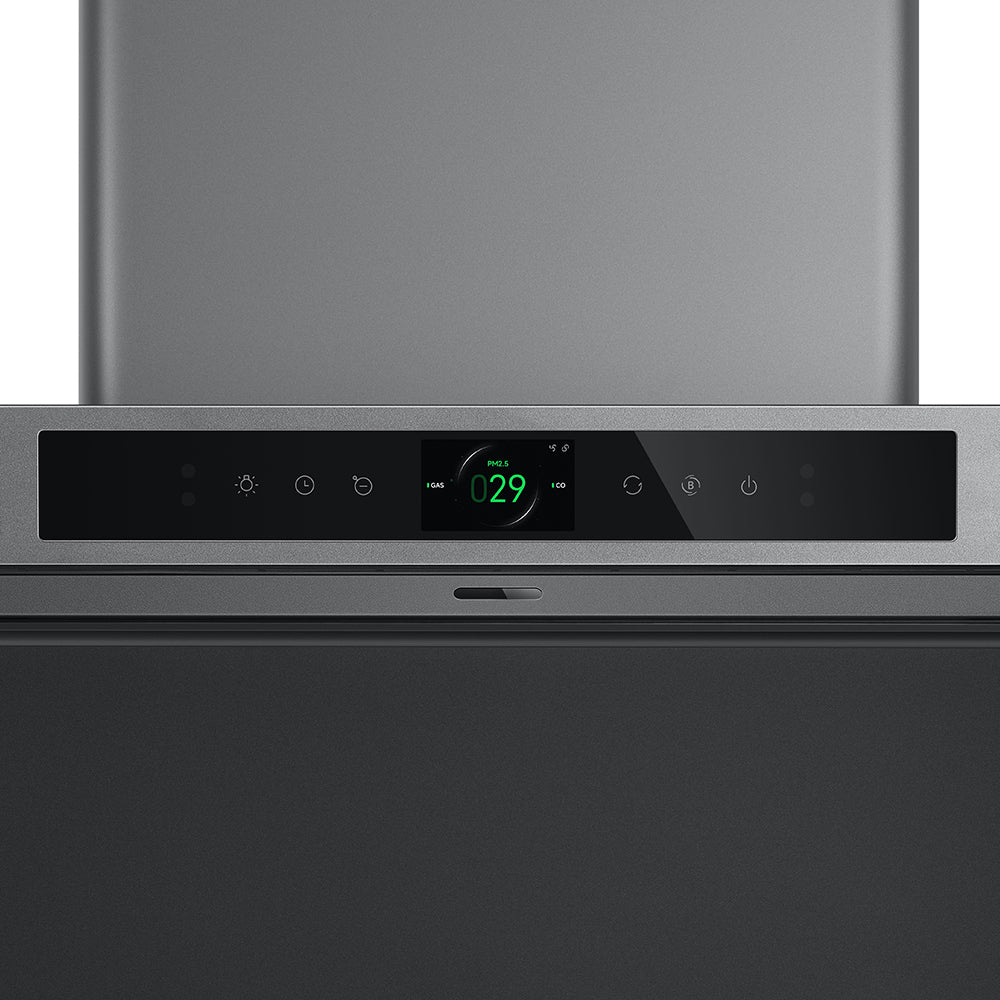

- A sensor reads fine particles while you cook and puts the number on the panel
Regular price
$1,499.00
Regular price
Sale price
$1,499.00
Quantity
Couldn't load pickup availability
Accessories & Installation Service
ADD TO CART
Standard Range Hood Installation
Regular price
$199.00
Regular price
$349.00
Sale price
$199.00
Sale
$399.00
ADD TO CART
Advanced Range Hood Installation
Regular price
$399.00
Regular price
$999.00
Sale price
$399.00
Sale
DESCRIPTION
FEATURE
INCLUDED
SHIPPING
RETURNS
Arspura P2 advances kitchen air purification with smart monitoring—featuring a real-time PM2.5 display for clearer, more responsive air awareness. Powered by patented IQV™ technology, it delivers ultra-fast 14 m/s backward airflow that instantly captures smoke, grease, and odors at the source.
Engineered for precision airflow control, Arspura P2 helps reduce lingering particulates and keeps your kitchen environment fresher during everyday cooking. The diamond-frosted glass panel with lotus-leaf bionic coating resists oil buildup and wipes clean effortlessly.

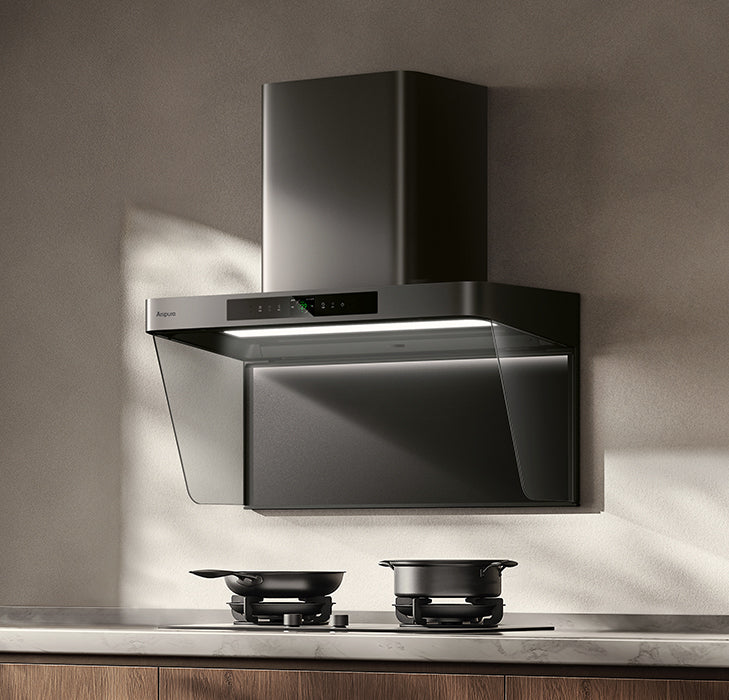

With expanded cooking space and sleek design, Arspura P2 combines advanced air intelligence, cutting-edge aesthetics, and powerful suction performance—redefining what it means to breathe clean and cook freely.

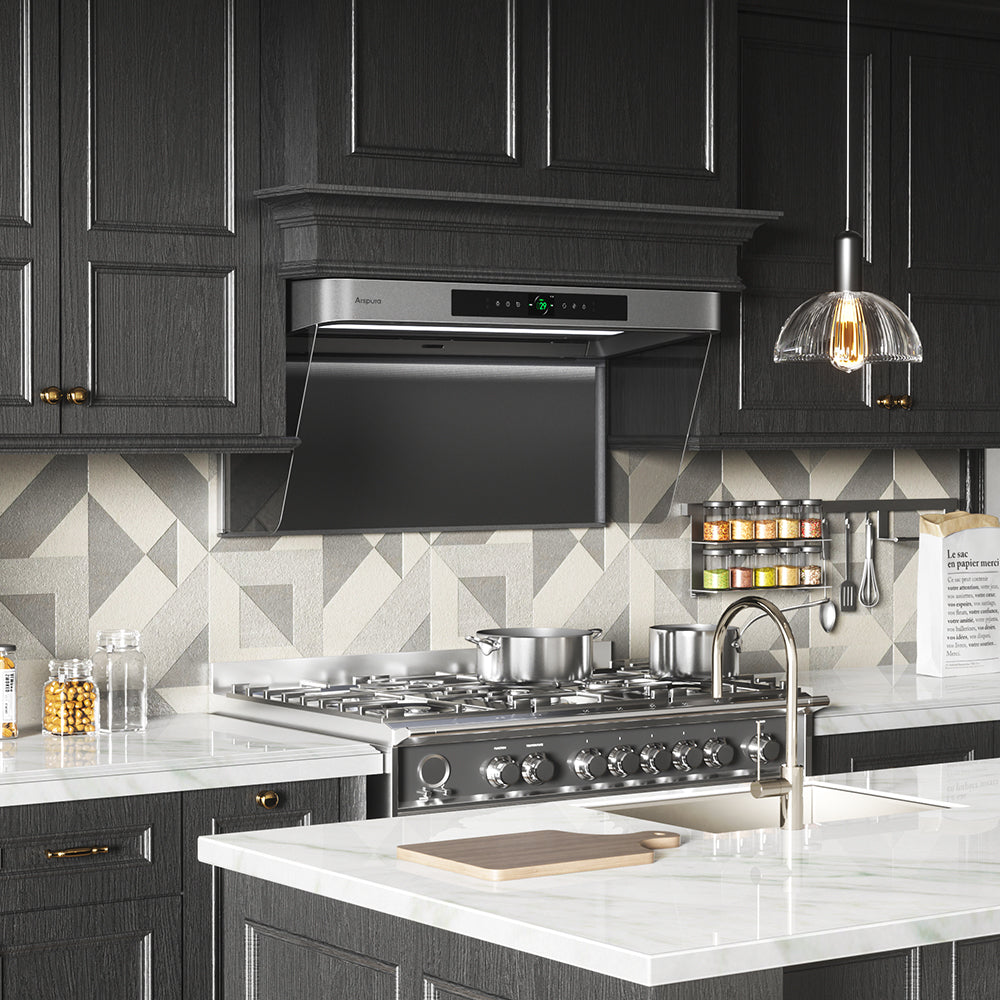

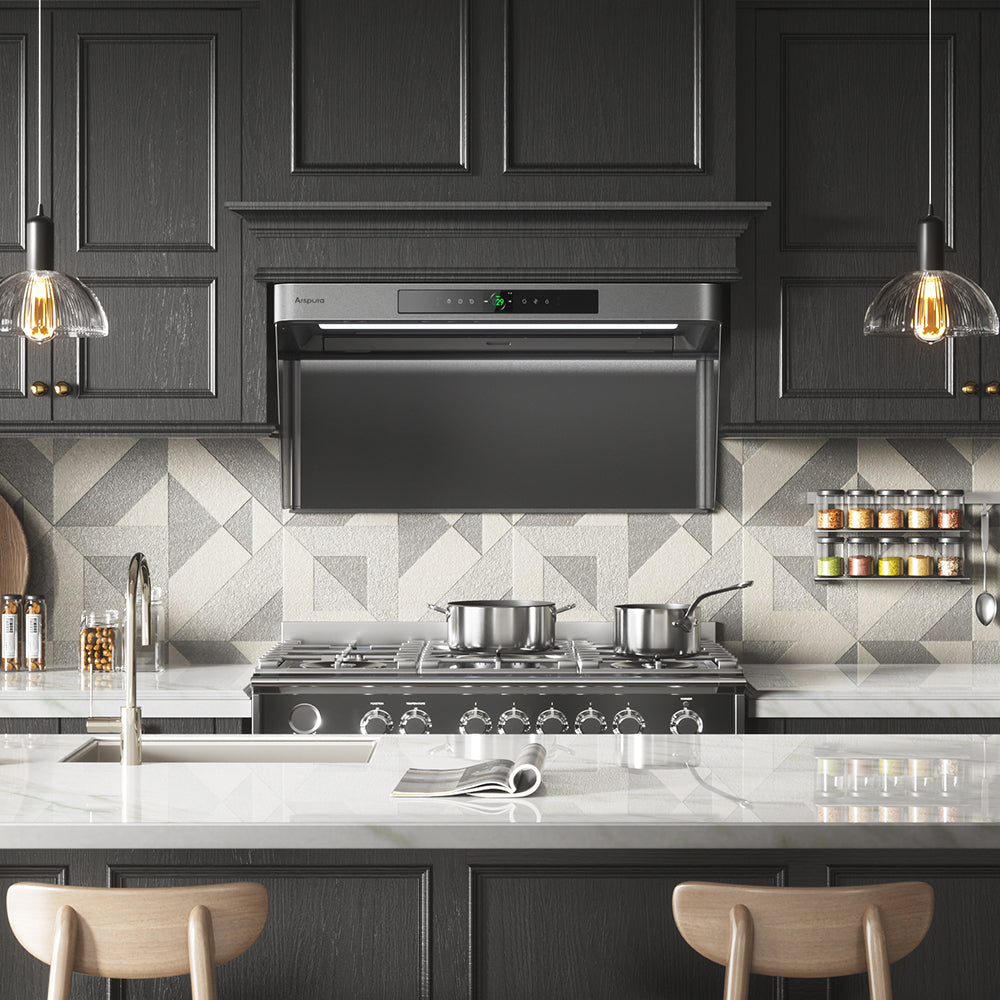

- Fits a 36-inch stove on the wall or under a cabinet, and the box has the template and hardware
- IQV pulls the smoke out at the pan instead of waiting for it to reach the ceiling

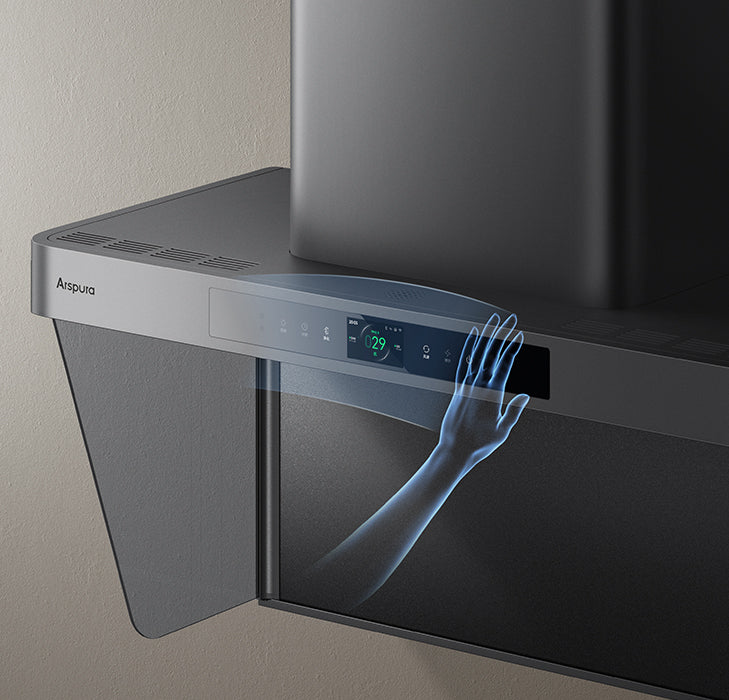

- Wave to change the speed when your hands are covered in oil

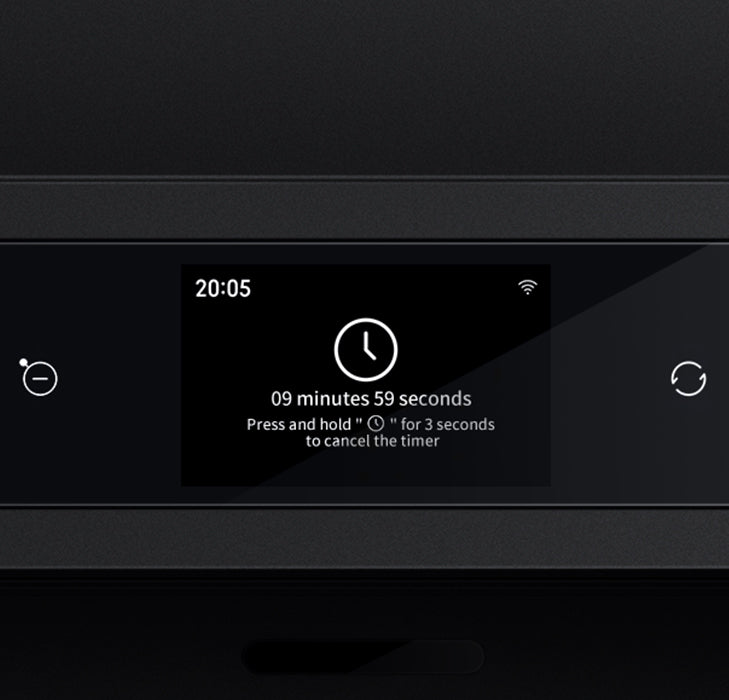

- Set the timer and it keeps running after you finish, then turns itself off
- Light over the burners is warm rather than blue, so food looks like food

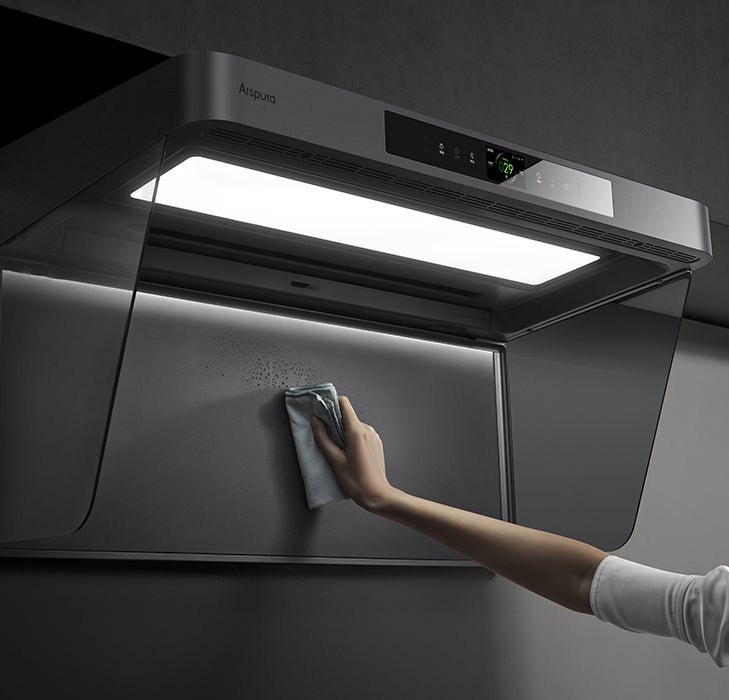

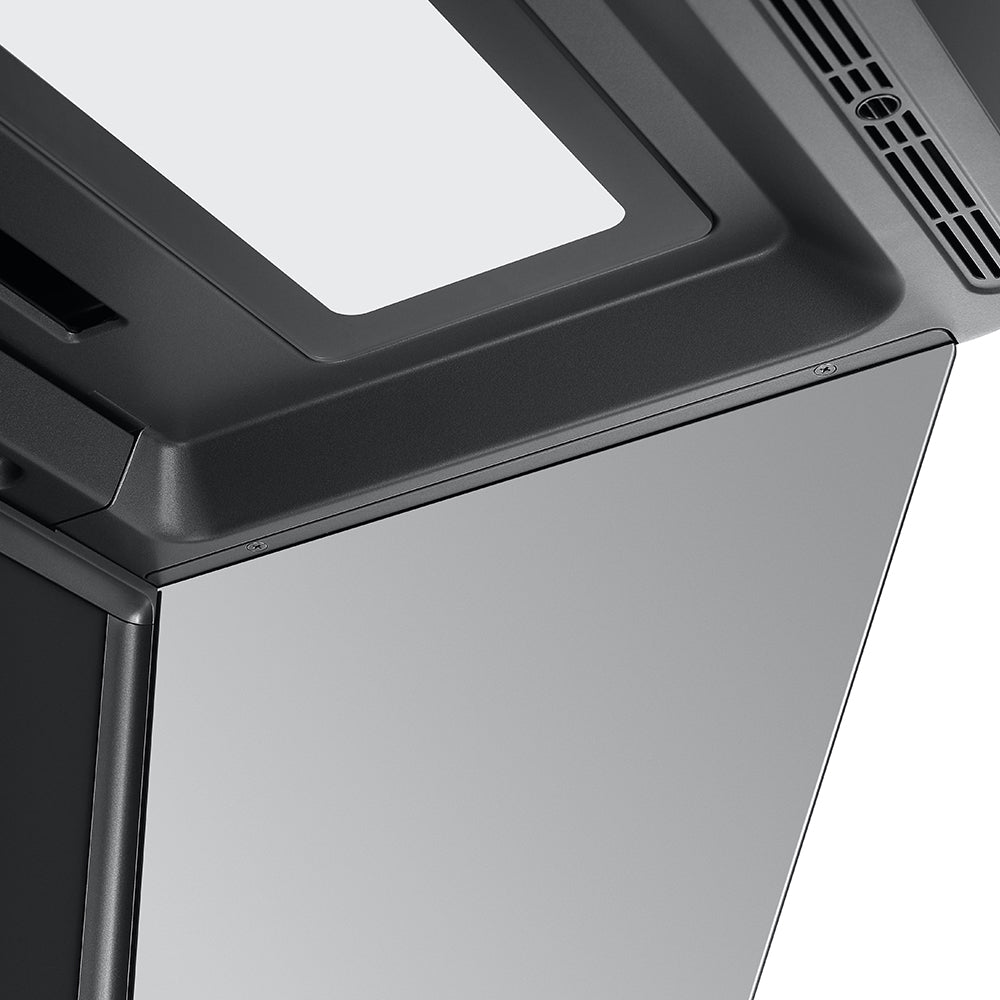

- Grease sits on the diamond glass instead of soaking in, and a cloth takes it off

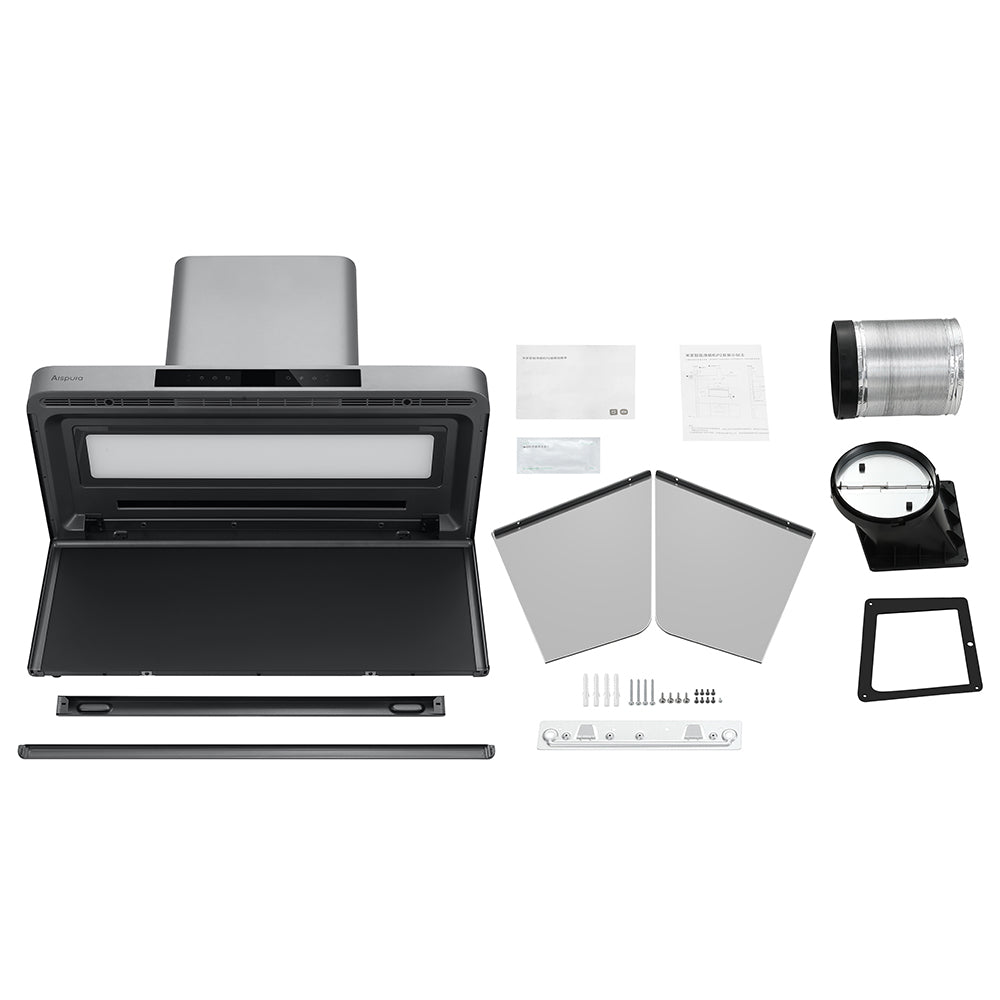

1 × Hanging Plate
4 × Wood Screws (ST5 × 50)
2 × Aluminum Foil Sheets
4 × Expansion Tubes (Φ10 × 50)
4 × M4 × 20 Screws
1 × Air Outlet Pipe (Φ150)
2 × Glass Baffle Plates
1 × Oil Storage Cup
1 × Smoke Pipe
2 × Self-Tapping Screws (ST4 × 12)
2 × Self-Tapping Screws (ST4 × 8)
1 × User Manual
Free standard shipping on all orders within the 48 contiguous United States.
Orders are processed within 1–2 business days.
Estimated delivery time is 3–8 business days.
Tracking information will be emailed once the order has shipped.
Orders are shipped via trusted carriers such as FedEx, UPS, or USPS.
We do not currently ship to Alaska, Hawaii, U.S. territories, P.O. Boxes, or international addresses.
Questions? View the full shipping policy here.
We offer a 45-day return window for items in original, unused condition with proof of purchase. Returns due to product defects or shipping errors will receive prepaid labels.
For personal reasons (e.g., size, design), customers cover return shipping. Some items (e.g., perishables, personalized goods) are non-returnable.
Large items must be inspected upon delivery; damages must be reported within 48 hours. No direct exchanges—please return and reorder.
Refunds are processed within 7–14 business days after approval.
Questions? View the full returns & refund policy here.
Contact us at sales@arspura.com.

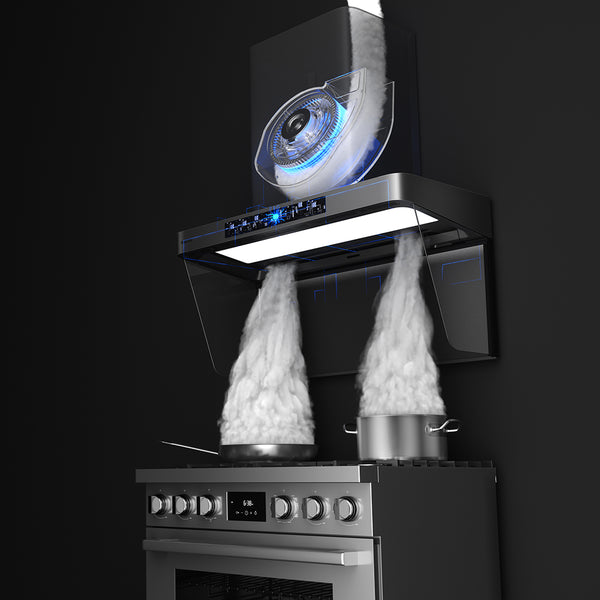

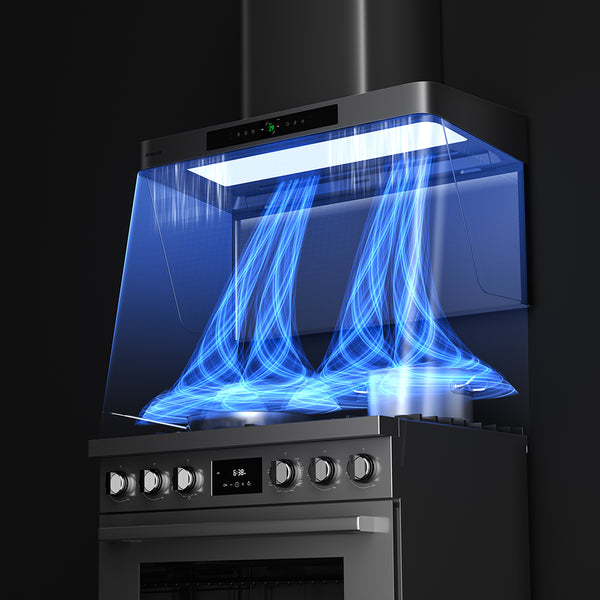

IQV™ Total Capture Technology
Game-Changing Cooking Air Control

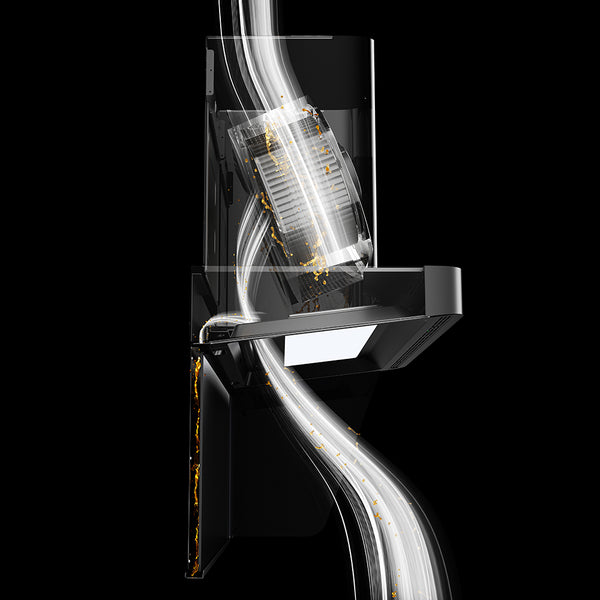

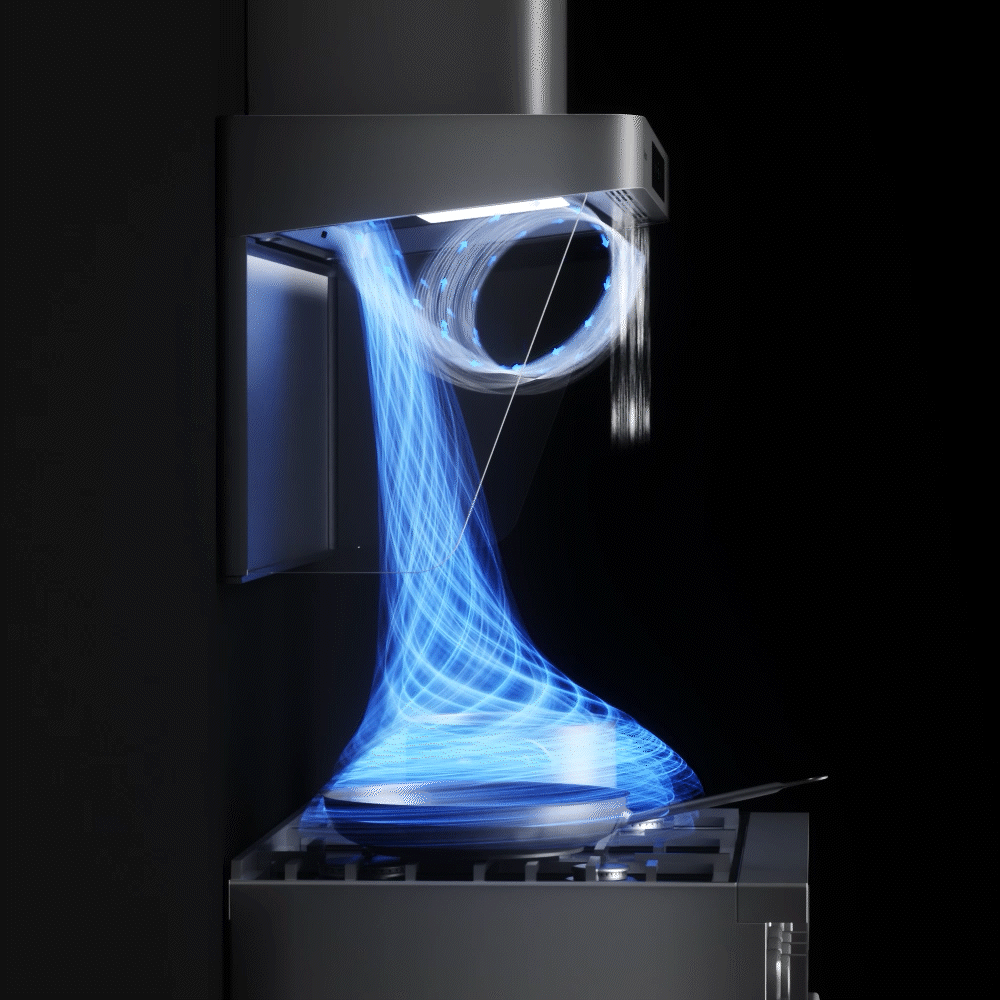

P2 is upgraded top-suction chamber with patented IQV tech fully traps kitchen smoke at source via 3 coordinated airflow systems.
Dual cross-flow air curtains create wider front airflow barriers to block smoke escape.

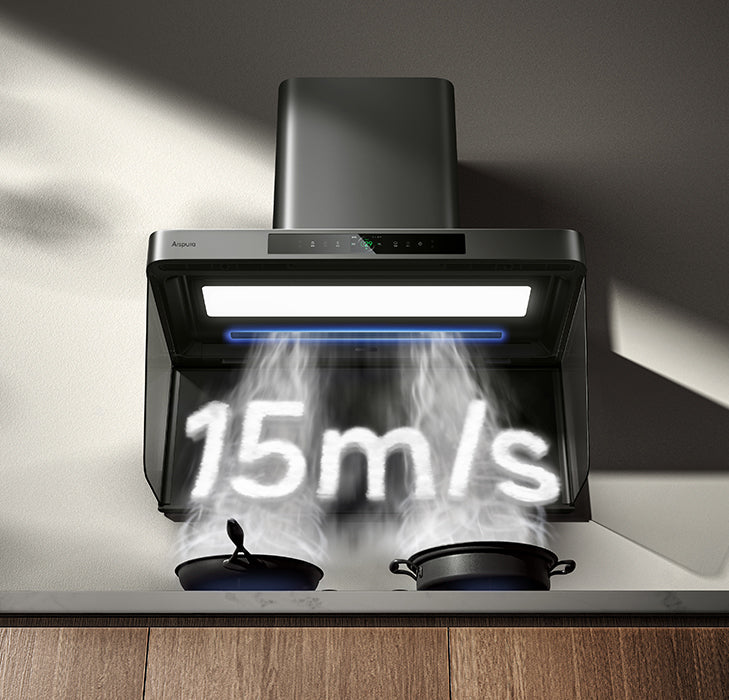

Using the Coandă effect, the 15m/s inclined high-speed airflow carries smoke away from you, creating a "Healthy Triangle Zone" for breathing.
Four connter-rotating vortices lock smoke, grease, PM2.5 & odors right at the cooktop.

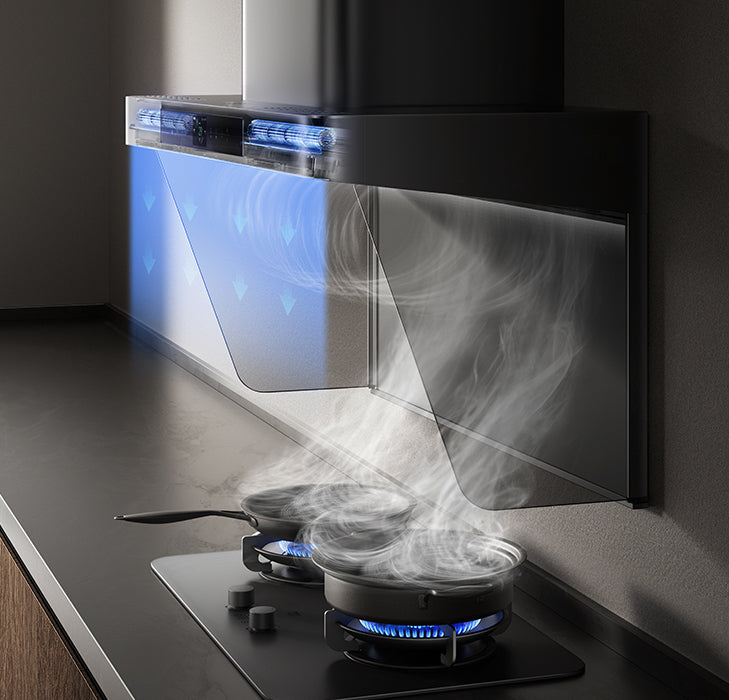

Dual Containment Air Curtains
Prevent Leakage
High-Speed Rear-Tilted Airflow
Directional Extraction
Inclined Quad-Vortex (IQV)
Source Capture
Cooking Smoke Includes Particles You Can't Always See
PM2.5 Spread Comparison
With P2 IQV™ Total Capture
Outside Area PM2.5<50ug/m3
Conventional Range Hood
Heavy smoke leakage and spread
PM2.5 Monitoring Results Across Hood Types
IQV™ Total Capture
High-CFM Range Hood
Conventional Range Hood
Top Choice for Serious Cooks & Open Kitchens
-
Independent Testing
-
High-Precision Performance
-
Quiet Operation
Our Range Hood's proprietary IQV dynamic particle capture technology has obtained official performance verification from TUV Rheinland, the world's top German testing institute.
Tested under harsh stir-frying & cross-air conditions, it traps smoke, harmful PM2.5 particles and odors at source with zero leakage.
Real-World Testing. Visible Results.
Zero Smoke Leakage
“Arspura IQV™ technology builds an airtight airflow barrier that prevents fumes from escaping, keeping your kitchen clean and smoke-free.”
Consistent Airflow Power

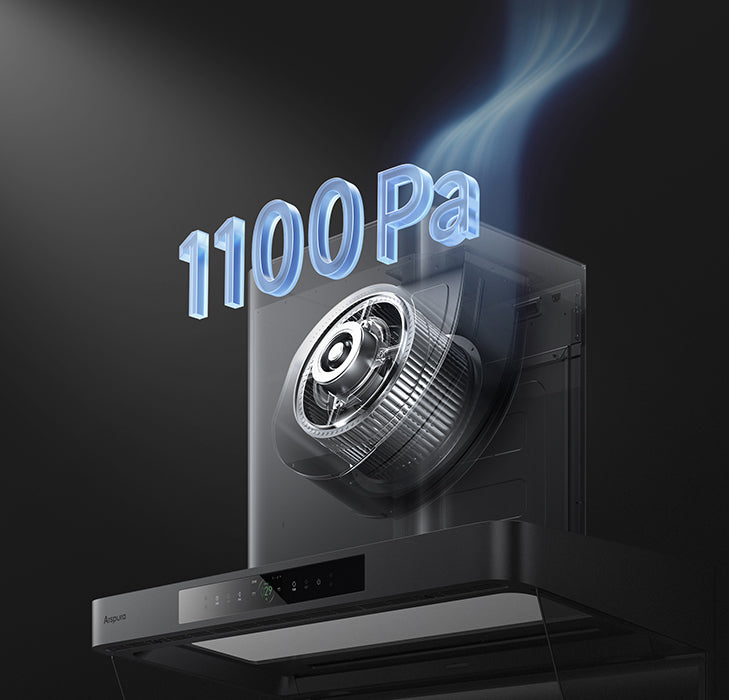

“Equipped with the Self-Developed Wind Engine™, Arspura maintains strong airflow over time—no performance drop, even after long use.”
Wider Capture Zone
“Capture smoke from up to 60cm away with powerful 15m/s airflow and 1200Pa suction—keeping your kitchen air clean before fumes spread.”

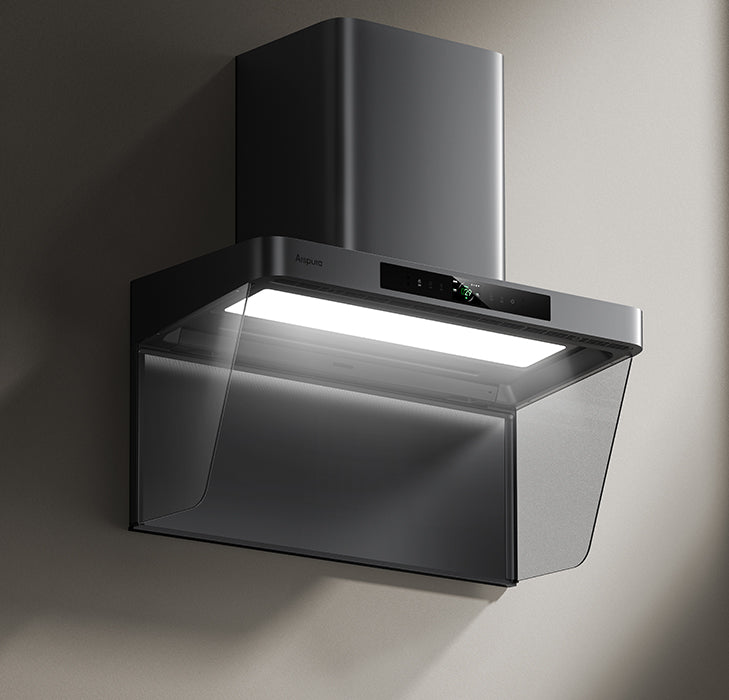

Full-Zone Natural Lighting
-
Soft Overhead Lighting
-
Gradient Back Panel Illumination
-
See food the way it meant to look
Comfortable Conversation Level Quiet
Powerful smoke removal with just 64 dB(A) of noise.
Enjoy a cleaner kitchen without the distraction of loud operation.
Additional Features

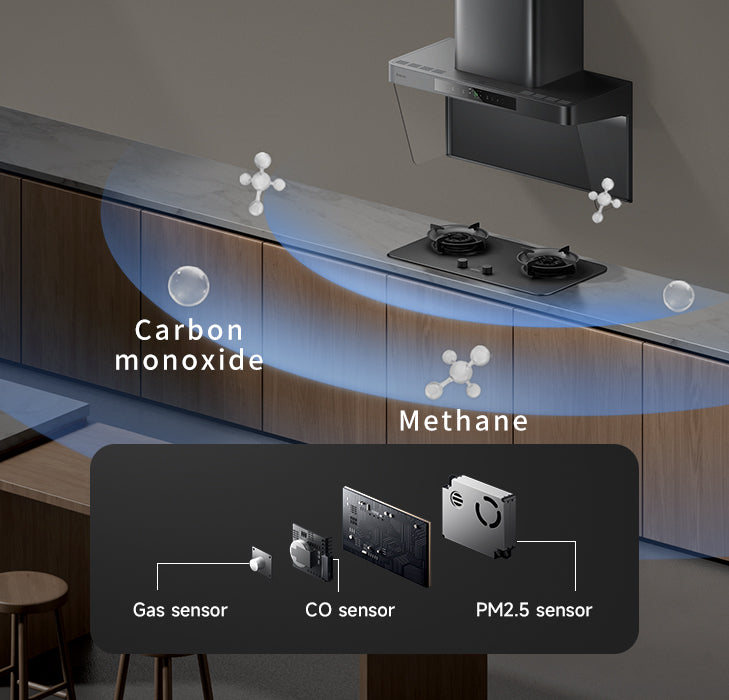

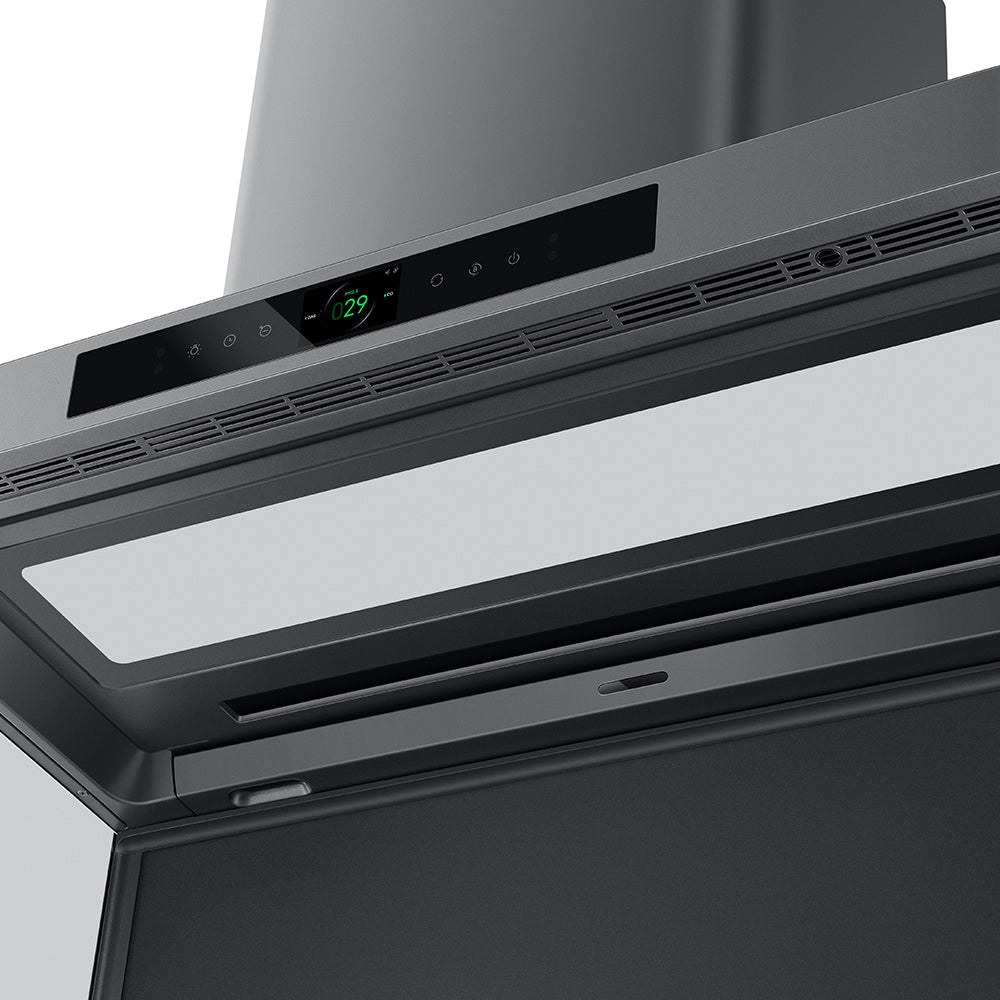

PM2.5 Real-time Monitoring
High-precision PM2.5 sensor is purpose-built for cooking environments, detecting particles from 0.3µm to 10µm, tracking air changes over 60 times per minute.
Easier Wipe-Down
Lotus-Effect Nano coating helps reduce stubborn oil adhesion for faster everyday cleaning.
Smart Airflow That Saves Energy
Maintains consistent airflow instead of running at maximum power all the time, helping reduce energy use while delivering reliable smoke capture.
Arspura P2 Range Hood Specs
Overview
Product Name: Arspura IQV P2 Range Hood
Model: CXW-165-P2
Material:
Powder-Coated Steel
Mount Type: Wall-Mounted / Under-cabinet
Vent Type: Ducted (Outside the House)
Compatibility: Fits most 2–6 burner cooktops
Performance
Max Air Volume: 10 m³/min
Max Air Flow Speed: 15 m/s
Motor Type: BLDC (Brushless Direct Current)
Speeds: 4 levels
Time-Delayed Shutdown: 3 minutes
Noise Level (Normal): < 64 dB(A)
Dimensions
Size:
35 3/16×16 13/16×34 7/8″(895×426×886mm)
Weight: 33.5 kg
Package Dimensions: 39.9" × 26.1" × 21.8"
Power
Main Motor Power: 250W
Rated Input Power (Total): 253W (incl. lighting)
Replaceable Light Power: 10W
Airflow
Exhaust
Air Duct Structure: Double-Layer Sealed Air Duct
Oil Fume Exhaust: Ducted exhaust via pipeline
Surface
Durability
Surface Coating:
Nano-coated Frosted Glass
Construction:
Easy-clean back panels, durable against heat and grease
Electrical
Power Supply(V/Hz)
120V/60Hz
Power Cable Length
59" (1.5 m)
Plug Type
U.S. 3-Prong Plug (NEMA 5-15P), Grounded
Power Cable
Specification
60227 IEC 53RV
300/500V, 3 × 0.75 mm²
Installation Service
Service Details
Standard Range Hood Installation
Advanced Range Hood Installation
Average Market Price
Remove existing microwave
✔️
✔️
$50
Remove old hood and install new one
✔️
✔️
$299
Cabinet cutting or removing
❌
✔️
$200
Outlet relocation
❌
✔️
$150
First-floor exterior wall vent
❌
✔️
$300
Arspura Limited-Time Price
$199
$399
$999(Total)
Engineered for Purity. Designed for Life.
Industry-leading 15m/s airspeed. A 0.1-second reponse captures heavy smoke up to 10x faster before it has chance to spread.
Arspura P2 IQV Range Hood
Other Range Hoods
Airflow Power
14m/s Ultra-Fast
3-5m/s Weak Airflow
Suction Power
Consistent High Performance
Declining Efficiency
Smoke Removal
Captures Fumes in 0.03s
Slow Response
Odor Control
99% Odor Elimination
Residual Odors
PM2.5 Monitoring
Real-time PM2.5 Detection
×
Noise & Energy Efficiency
Whisper-Quiet & Energy-Saving
Loud & Power-Hungry
Maintenance
Filter-Free & Low-Maintenance
Frequent Filter Changes & Messy Cleaning
Find Your Perfect Arspura
Suction Type
Side Suction
Top Suction
Top & Side Suction
Top & Side Suction
Product Size
35 1/2×18 1/8×38 1/2″
35 3/16×16 13/16×34 7/8″
29 1/2×16×30 5/8″
35 3/16×16×30 5/8’’
Color Options
Gray; Black
Gray
Gray
Gray
Max Air Flow Speed
13m/s
15m/s
16m/s
16m/s
Max Static Pressure
900Pa
1200Pa
750Pa
800Pa
Noise Level
67dB（A）
64dB（A）
58dB（A）
58dB（A）
Surface Coating
Silicone-Coated Material
Nano-Coated Frosted Glass
Black Crystal Tempered Glass
Black Crystal Tempered Glass
Lighting Power
3W
10W
6W
3W
PM2.5 Monitor
✓
✓
—
—
Smart App
—
—
Tuya Smart
Tuya Smart
Net Weight
27KG
33.5KG
23KG
25KG
Why High AIrspeed Matters More Than High CFM
In Real Kitchens
Let's do this!
Ask us anything or just say hi...

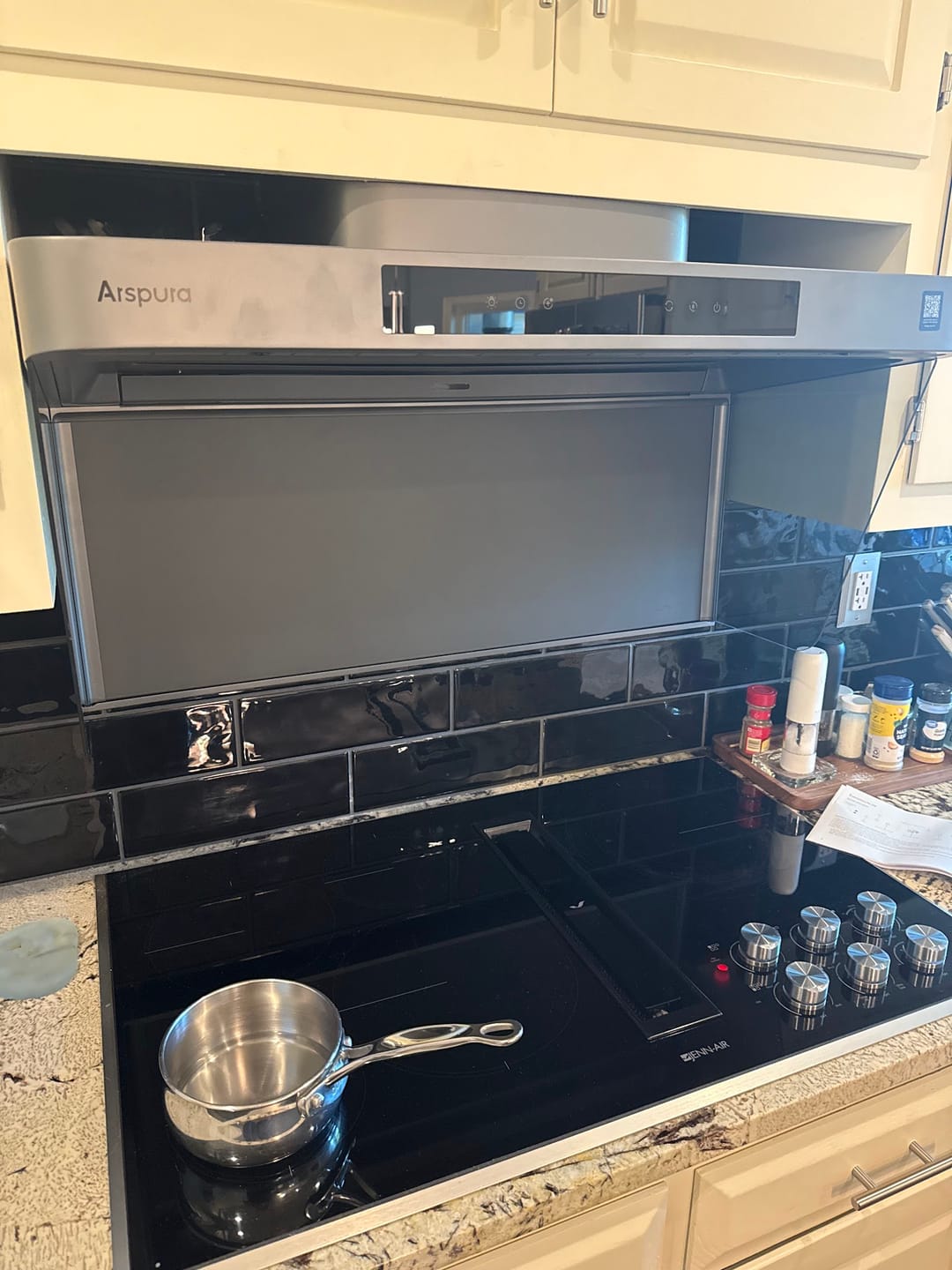

Customer Reviews
