How to Vent a Range Hood Through an Exterior Wall

Venting your range hood outside through an exterior wall is the most effective way to remove cooking smoke, grease, and odors from your kitchen. Unlike recirculating setups that just filter and push air back into the room, a wall vent sends everything straight outdoors. It is also often the shortest, most direct duct path you can run, which means better airflow and quieter operation.

This guide walks you through the full process of cutting through an exterior wall, connecting your ductwork, and sealing everything properly. Whether you are installing a brand-new range hood or upgrading from a ductless to a ducted setup, you will find everything you need here.

Before You Start: Planning and Code Requirements

Check Your Local Building Codes

Most municipalities follow the International Residential Code (IRC), which governs kitchen ventilation requirements. A few things to verify before you begin:

• Permit requirements — Some jurisdictions require a mechanical permit for cutting through an exterior wall. Call your local building department first.
• Duct termination rules — Exhaust must terminate outside the building. The vent cap should be at least 3 feet from any property line and 10 feet from any air intake (like an HVAC return).
• Backdraft damper — Required on the exterior wall cap to prevent outside air from entering when the hood is off.
• Fire-rated walls — If your exterior wall is fire-rated (common in townhomes and multi-family buildings), penetrating it may require a fire-rated damper or may not be permitted at all.

Choose the Right Duct Size

The duct diameter must match your range hood's specifications. Using the wrong size kills performance.

High-performance hoods like the Arspura P2, with its 15 m/s air velocity, benefit significantly from properly sized ductwork. Undersized ducts create backpressure that forces the motor to work harder, increases noise, and reduces effective ventilation. Check your hood's installation manual for the exact specification.

Plan Your Duct Route

The golden rule: keep it short and straight. Every 90-degree elbow adds roughly 5–7 feet of equivalent duct length, and every foot of extra duct reduces airflow.

For a wall vent, the ideal route is a straight horizontal run from the hood through the wall. If your hood sits on the same wall you are venting through, the duct run might be as short as 12–18 inches. If the hood is on an interior wall, you will need to run duct through the cabinet space or soffit to reach the exterior wall.

Avoid these common ductwork mistakes that compromise performance:

• Using flexible (dryer-style) duct instead of rigid or semi-rigid metal
• Adding unnecessary elbows or S-curves
• Running duct downward at any point (grease will pool)
• Reducing duct size with adapters

Tools and Materials You Will Need

Tools

• Stud finder
• Tape measure and level
• Reciprocating saw (for cutting through wall framing if needed)
• Hole saw or jigsaw sized for your duct diameter
• Drill with long masonry bit (if you have brick or stone exterior)
• Caulk gun
• Tin snips
• Screwdriver or drill with screwdriver bits
• Safety glasses, dust mask, and ear protection

Materials

• Rigid metal duct (galvanized steel or aluminum) in the correct diameter
• Exterior wall cap with backdraft damper
• Foil HVAC tape (not standard duct tape)
• Exterior-grade silicone caulk
• Sheet metal screws
• Duct connector or transition piece (if your hood outlet does not match the duct size)
• Fire-stop caulk (if penetrating a fire-rated assembly)

For a full breakdown of what professional installation typically runs, see our range hood installation cost guide.

Step-by-Step: How to Vent a Range Hood Through a Wall

Step 1: Locate and Mark the Hole Position

1. Mount your range hood on the wall (or hold it in position with a helper) to determine exactly where the duct outlet sits.
2. Use a stud finder to check for studs, electrical wiring, and plumbing in the wall cavity where you plan to cut. Move the hole location if needed.
3. Mark the center point of the duct hole on the interior wall.
4. Drill a long reference hole all the way through the wall from inside to outside. This pilot hole lets you find the exact position on the exterior.

Important: If you hit a stud, you have two options. You can shift the hole a few inches to avoid the stud, or you can cut through the stud and add a header above the opening. Cutting a load-bearing stud without proper reinforcement is a structural risk. If you are unsure whether a wall is load-bearing, consult a contractor.

Step 2: Cut the Interior Wall Opening

1. Trace a circle on the drywall using your duct diameter as a guide. Add about 1/4 inch clearance around the duct.
2. Score the drywall with a utility knife to minimize crumbling.
3. Cut out the circle with a jigsaw or drywall saw.
4. Remove any insulation from the wall cavity in the path of the duct.

Step 3: Cut Through the Exterior Wall

This step varies depending on your exterior material:

Vinyl or wood siding:

1. Find your pilot hole on the outside.
2. Trace the wall cap flange outline on the siding.
3. Cut through the siding and sheathing with a reciprocating saw or jigsaw.

Brick, stone, or stucco:

1. Find your pilot hole on the outside.
2. Use a masonry hole saw or a series of drilled holes around the perimeter, then chisel out the center.
3. This is significantly more work. If you have a masonry exterior, seriously consider hiring a professional or taking advantage of programs like Arspura's complimentary professional installation, which covers duct routing through the wall.

Step 4: Install the Duct Through the Wall

1. Slide a section of rigid metal duct through the wall opening from inside to outside. It should extend about 1/2 inch past the exterior wall surface.
2. The duct should slope slightly downward toward the outside (roughly 1/4 inch per foot) to prevent condensation from draining back into the kitchen.
3. Secure the duct to the wall framing with sheet metal screws or a duct strap.
4. Seal the gap between the duct and the wall opening on both sides with fire-stop caulk or expanding foam.

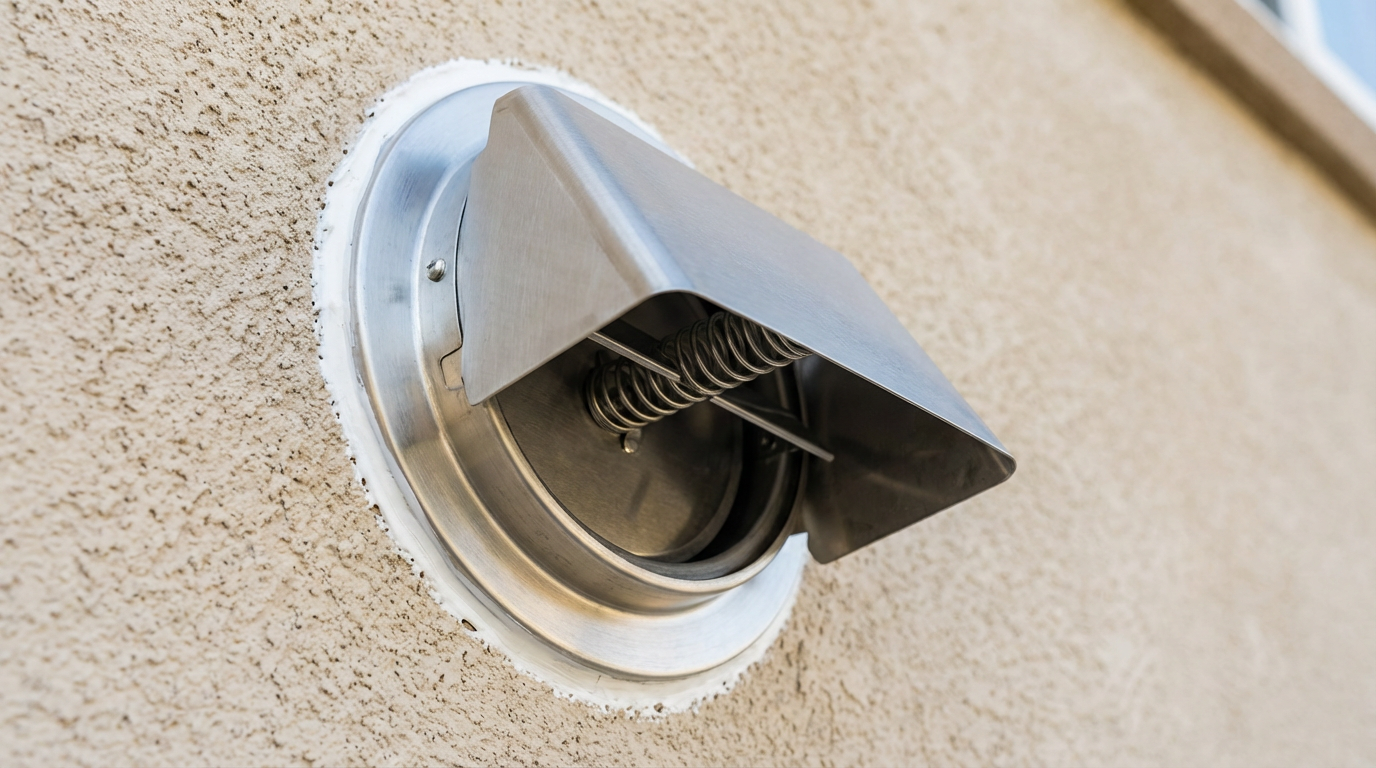

Step 5: Attach the Exterior Wall Cap

1. Slide the wall cap onto the duct from the outside.
2. Apply a continuous bead of exterior-grade silicone caulk around the flange of the wall cap where it meets the siding.
3. Secure the wall cap to the wall with screws through the pre-drilled mounting holes.
4. Apply additional caulk over the screw heads and along the top edge of the flange. Water should shed over the cap, not behind it.
5. Verify the backdraft damper flap opens and closes freely.

Step 6: Connect the Duct to Your Range Hood

1. Attach the indoor end of the duct to the range hood's exhaust outlet using a duct connector. If your hood has a top-discharge outlet and you are running horizontally, you will need a 90-degree elbow at the hood.
2. Secure every joint with sheet metal screws and seal with foil HVAC tape. Do not use standard cloth duct tape, as it degrades from heat and grease over time.
3. If you need to extend the duct run, Arspura offers a Duct Extension Connector Kit designed for their hoods that ensures a proper fit.

For more detail on the full hood mounting process, refer to our range hood installation guide.

Step 7: Test the Installation

1. Turn the range hood on to its highest setting.
2. Hold a piece of tissue paper near the hood's intake. It should pull toward the hood firmly.
3. Go outside and confirm strong airflow exiting the wall cap, and that the backdraft damper is opening fully.
4. Check all duct joints from inside for air leaks. You can feel for escaping air with your hand.
5. Listen for rattling or vibration, which usually indicates a loose connection.

Wall Vent vs. Ceiling Vent: Which Route Is Better?

If you have the option, venting through a wall is usually easier and more effective than routing ductwork up through the ceiling and out through the roof.

That said, ceiling venting is sometimes the only option, especially if your range hood sits on an island or if the exterior wall is not accessible. If that is your situation, check out our guide on ceiling venting for range hoods.

Tips for a Clean, Professional-Looking Finish

• Hide the duct run inside a soffit or cabinet. If the duct must travel horizontally along the wall before exiting, box it in with a matching soffit or route it through upper cabinets. See our tips on hiding range hood gaps for more ideas.
• Paint the wall cap. Most exterior wall caps come in white or silver. A quick coat of spray paint matched to your siding color makes it nearly invisible.
• Use rigid duct, not flex. Rigid duct has a smooth interior that moves air more efficiently and collects less grease. Flexible duct is a code violation in many areas for kitchen exhaust.
• Seal, then seal again. Grease-laden air will find every gap. Use foil tape on interior joints and silicone caulk on the exterior penetration. Check seals annually.

When to Skip the DIY and Call a Professional

This project is within reach for handy homeowners, but certain situations call for professional help:

• Your exterior wall is brick, stone, concrete block, or stucco
• The wall is load-bearing and a stud needs to be cut
• You need to reroute gas lines, electrical wiring, or plumbing in the wall cavity
• Your local code requires a licensed contractor for wall penetrations
• You are installing a high-CFM hood (900+ CFM) that may require makeup air provisions per code

If you are purchasing an Arspura range hood, professional installation is included at no extra cost. Their certified installers handle the full job, including wall penetration, duct routing, and electrical connection, so you get the performance benefits of a properly vented system without the risk of a DIY mistake.

Frequently Asked Questions

How big of a hole do I need to cut for a range hood wall vent?

The hole size matches your duct diameter plus about 1/4 inch of clearance on each side. For a 6-inch duct, cut a 6.5-inch hole. For an 8-inch duct, cut an 8.5-inch hole. The wall cap flange will cover the gap. Always check your wall cap's installation instructions, as some models require a specific cutout size.

Can I vent a range hood through a wall that has insulation?

Yes. Remove the insulation in the immediate path of the duct, but keep it packed tightly around the duct on all sides. The duct itself and the caulk seal will maintain the wall's thermal envelope. In cold climates, wrapping the duct section inside the wall cavity with pipe insulation prevents condensation from forming on the cold metal surface.

Do I need a makeup air system when venting through a wall?

Possibly. The IRC requires a makeup air provision for range hoods rated over 400 CFM in tightly sealed homes. This means you need a way to replace the air the hood exhausts so it does not depressurize your house (which can cause backdrafting of gas appliances). A simple makeup air damper installed near the hood or inline with your HVAC system usually satisfies the requirement. Check with your local building department for specifics.

What type of wall cap should I use?

Use a louvered wall cap with a built-in backdraft damper that matches your duct size. Avoid caps with insect screens made of fine mesh, as grease buildup will clog them quickly. A cap with a spring-loaded damper and wide louvers is the best combination for kitchen exhaust. Stainless steel or galvanized caps last longer than plastic in areas with extreme temperatures.

How far can I run duct horizontally through a wall?

Most range hood manufacturers recommend a maximum equivalent duct length of 30 feet, though shorter is always better. Remember that each 90-degree elbow counts as roughly 5–7 additional equivalent feet. For a wall vent, the actual distance through the wall is typically only 6–12 inches (the wall thickness), so you are well within limits. The total run from hood to exterior, including any elbows, is what matters.
