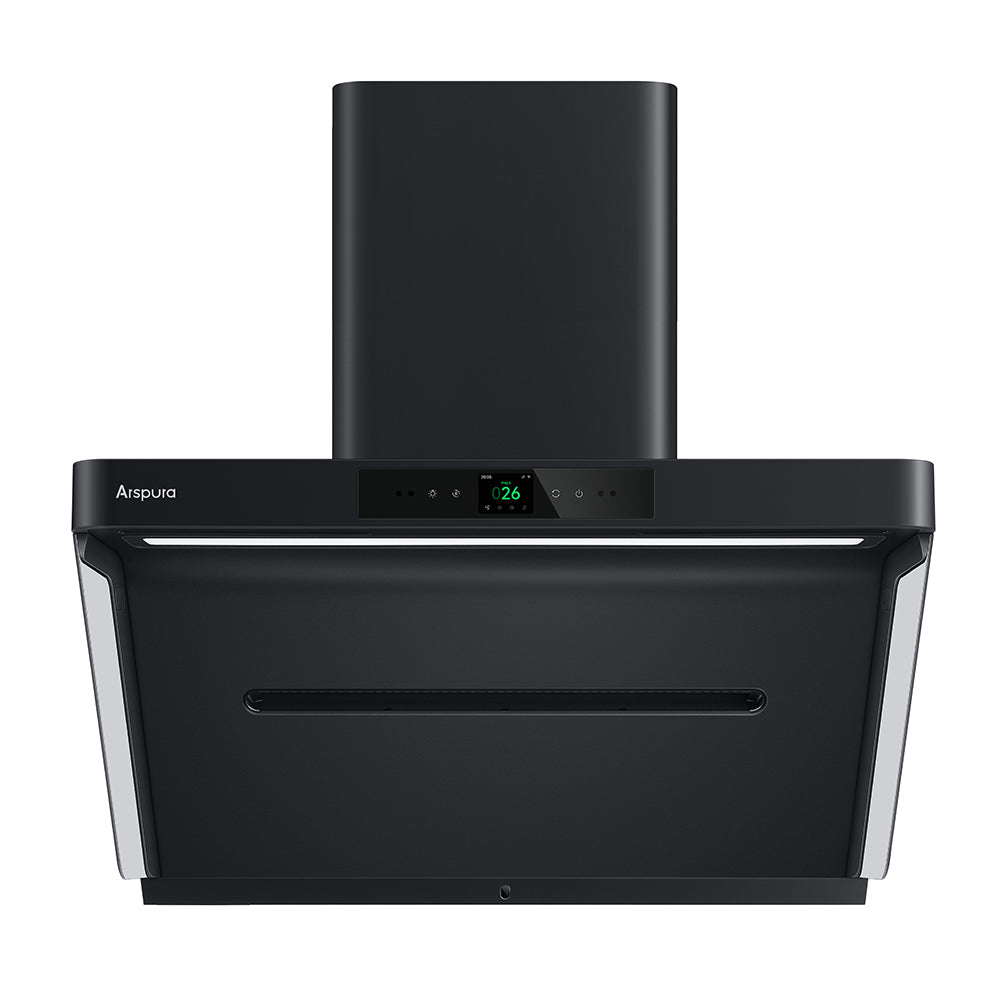

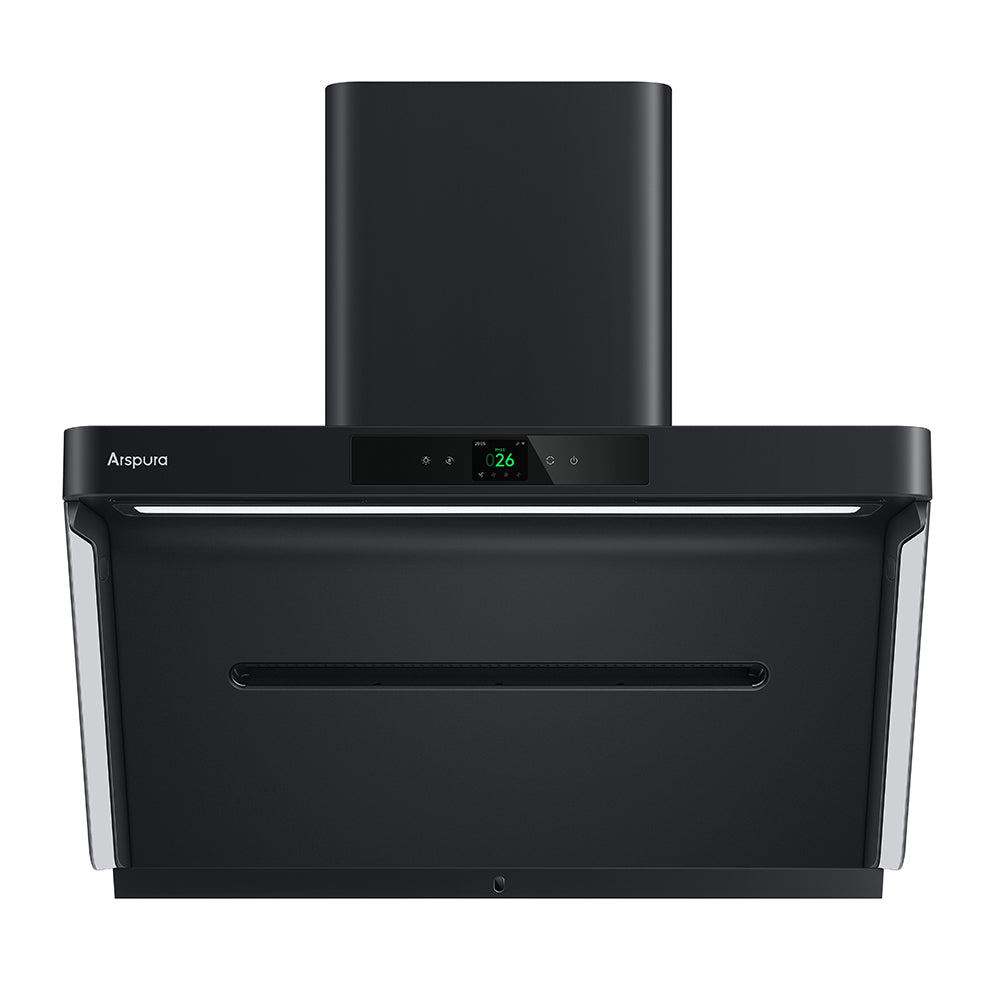

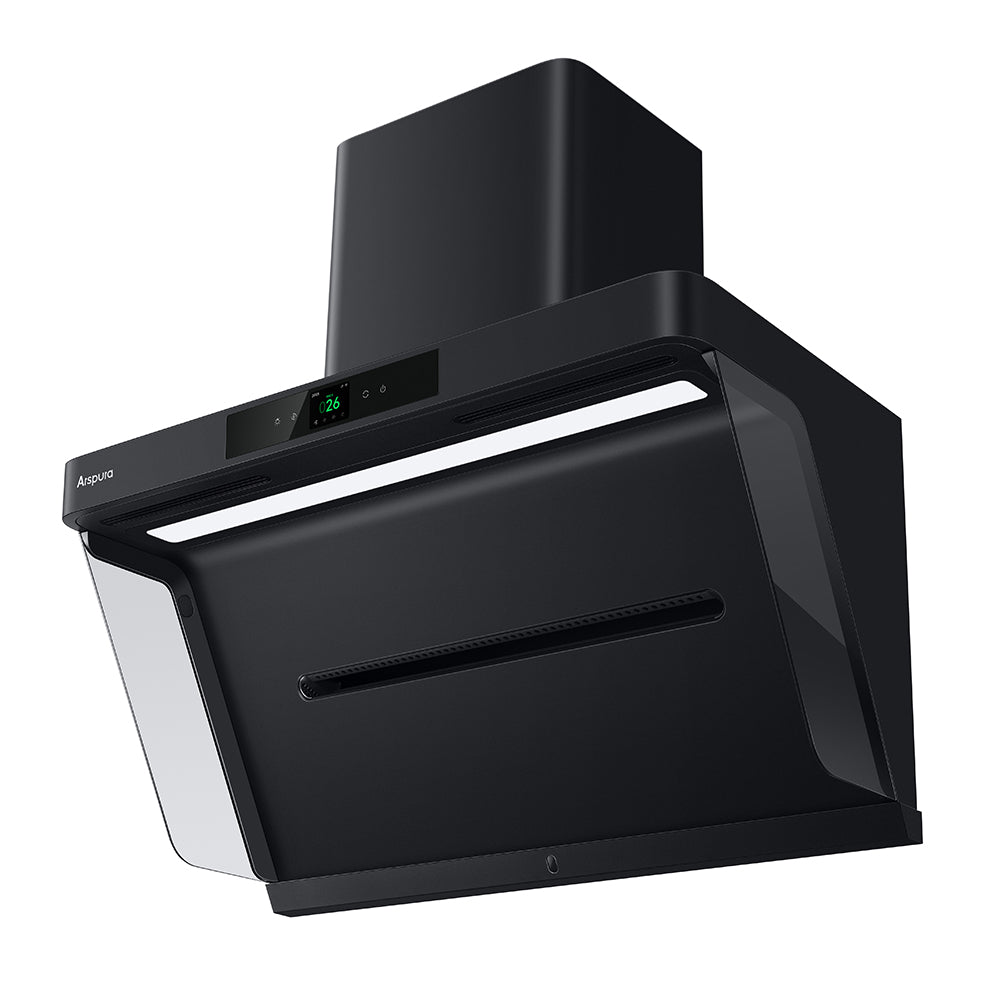

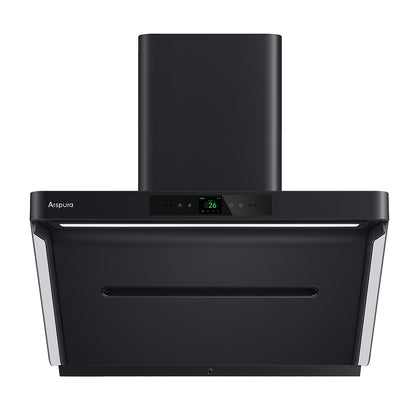

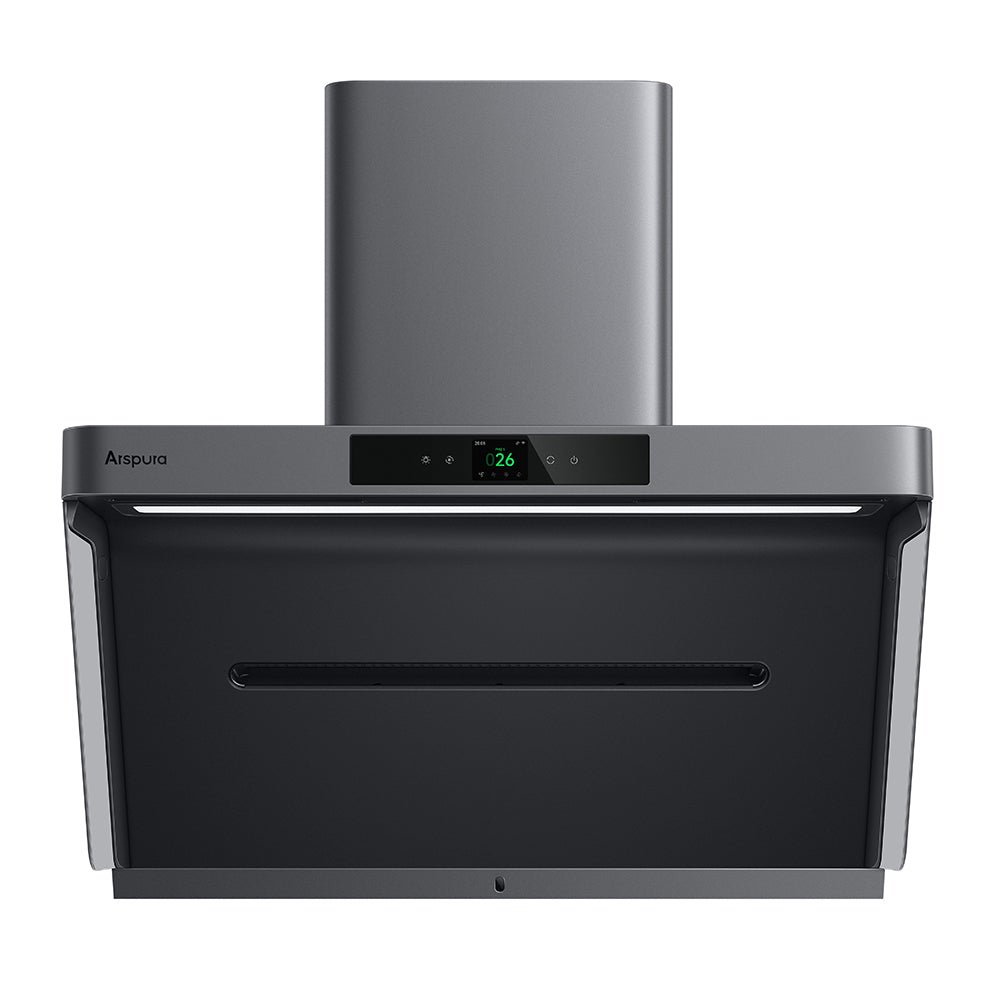

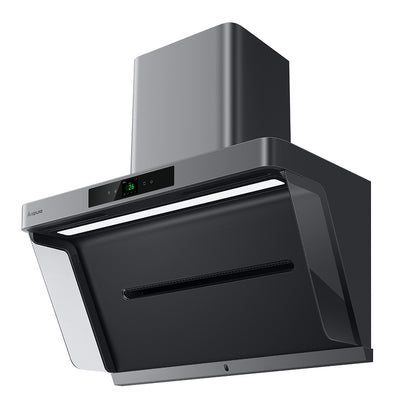

Arspura 36 inches P1 Pro IQV™ Range Hood

Name: Arspura 36 inches P1 Pro IQV™ Range Hood
Brand: Arspura
SKU: ARS36PROG
Price: 1099.0 USD
Availability: InStock
Rating: 4.5 (10 reviews)

17m/s, The IQV™ range hood with the highest airflow speed to date
Sized for a 36-inch stove, wall-mounted or under the cabinet
No mesh filter to scrub. Grease sits on the glass and a cloth takes it off
Higher speed but quieter at 62 dB(A), designed to keep cooking noise from taking over your space

$1,099.00

~~$1,199.00~~ $1,099.00

Sale Sold out

Color:

Size: 36 inches

36 inches

Estimated delivery:

Accessories & Installation Service

Advanced Range Hood Installation

$399.00

ADD TO CART

Advanced Range Hood Installation

Sale

Advanced Range Hood Installation

$399.00

~~$999.00~~ $399.00

Sale

Standard Range Hood Installation

$199.00

ADD TO CART

Standard Range Hood Installation

Sale

Standard Range Hood Installation

$199.00

~~$349.00~~ $199.00

Sale

View full details

DESCRIPTION

FEATURE

INCLUDED

SHIPPING

RETURNS

Arspura P1 PRO brings powerful smoke capture and smart air monitoring to your kitchen. Powered by IQV™ Total Capture, it combines 17 m/s high-speed airflow with three coordinated airflow technologies to capture smoke at the source, guide it along the back panel, and help keep it away from your breathing zone.
Real-time PM2.5 monitoring lets you see changes in your kitchen air, while automatic ventilation helps refresh the air when air quality drops. A filter-free design, self-cleaning blower, and grease-resistant back panel make everyday maintenance easier, with no filters to remove or wash.
Designed for everyday cooking, P1 PRO pairs spacious 36-inch coverage with bright, true-to-life lighting and 62 dB(A) operation at the highest speed. A streamlined, one-piece body simplifies installation, while hands-free controls let you manage ventilation without touching the panel.

IQV™ Total Capture uses 17 m/s airflow to capture smoke at the pan and guide it into the hood.
Real-time PM2.5 monitoring keeps changes in your kitchen air visible.
Automatic ventilation helps refresh the air when air quality drops. Requires Wi-Fi and setup in the Tuya Smart app.
No filters to remove or wash. A self-cleaning blower helps prevent grease buildup, and the coated back panel wipes clean easily.
Four fan speeds let you adjust ventilation to your cooking, with 62dB(A) noise at the highest setting.
High-CRI lighting reveals food’s natural colors, making it easier to check your cooking.
Wave your hand to turn the hood on or off, or control it remotely through the Tuya Smart app.
A 36-inch design provides wide cooking coverage, while the one-piece body simplifies installation.
A clear 1L oil cup lets you check the grease level at a glance, and rounded edges help reduce accidental bumps and scratches.

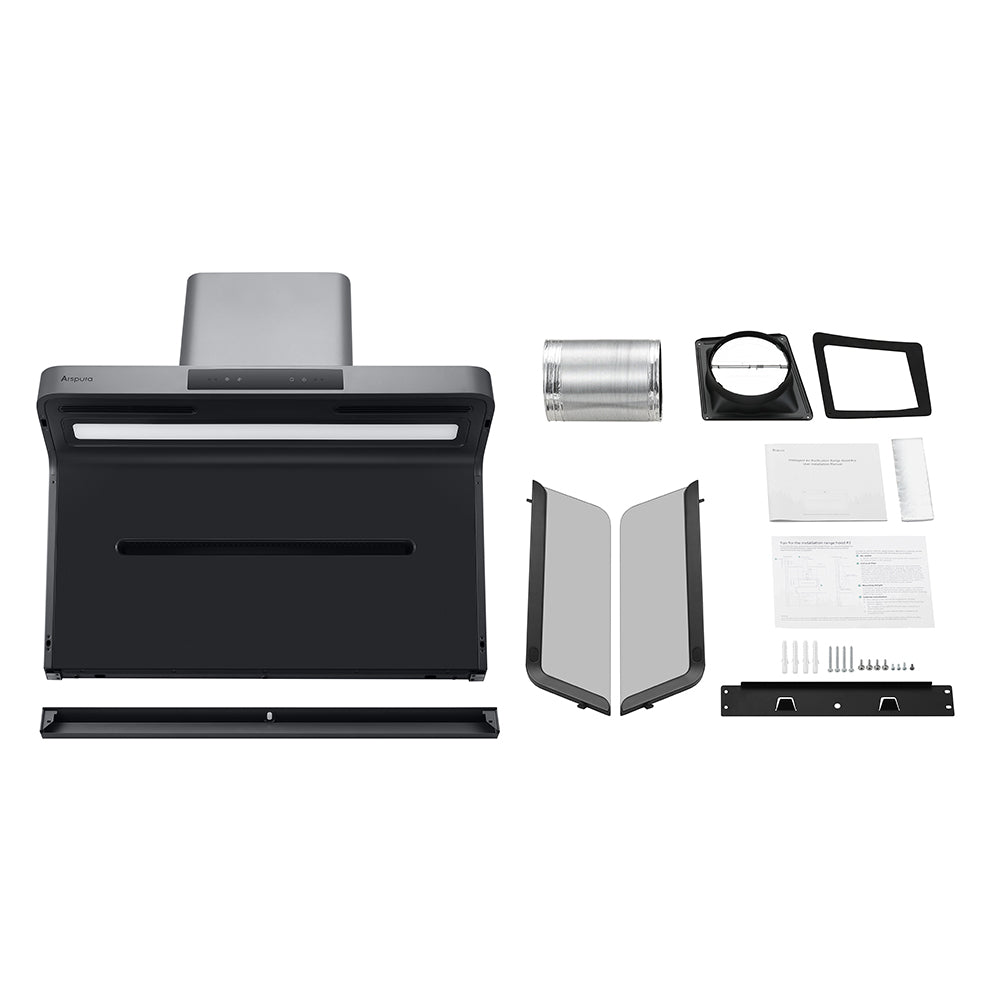

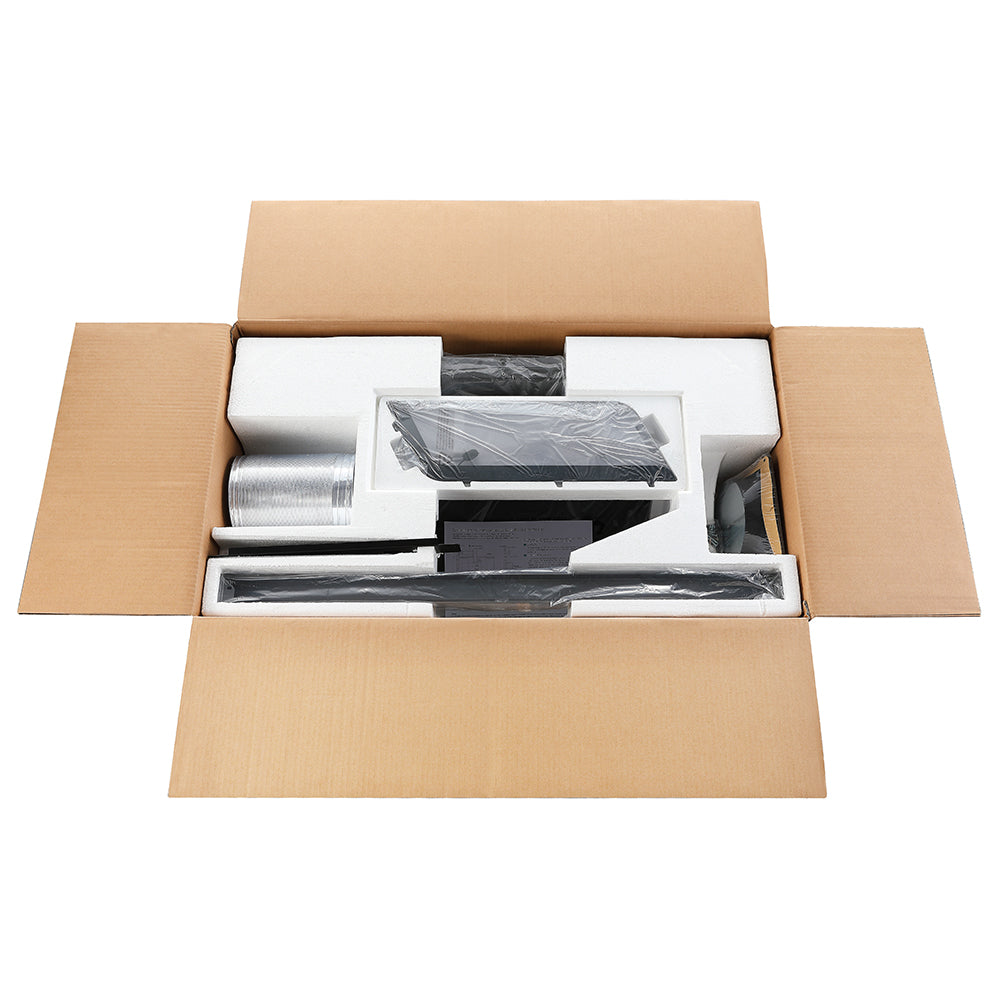

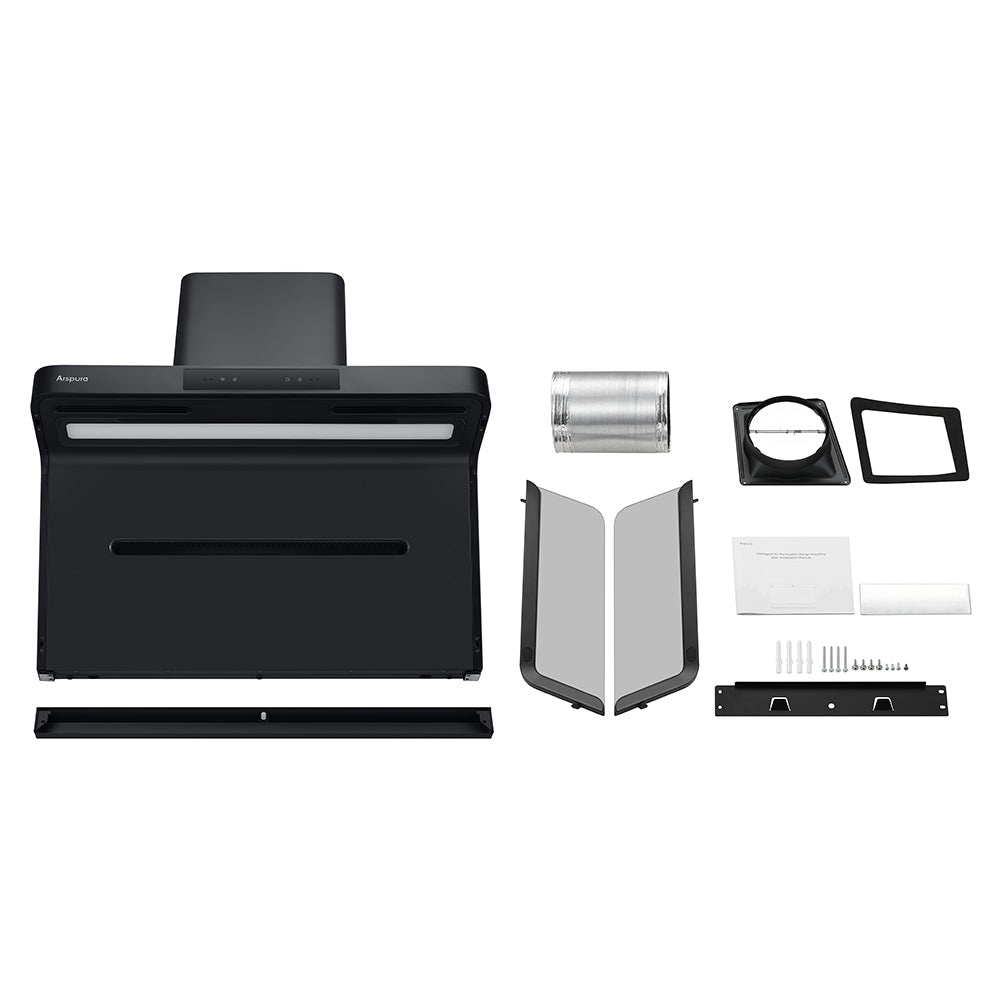

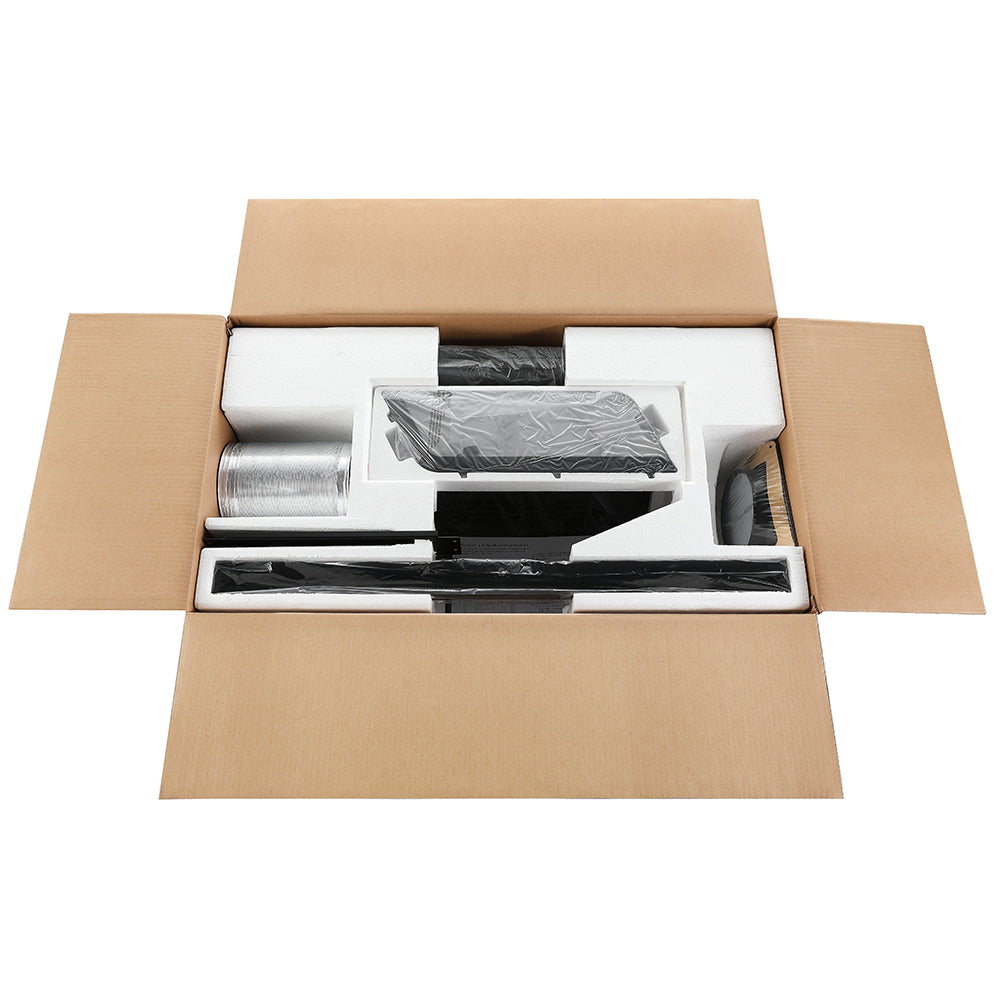

1 × Range Hood

2 × Smoke Shield Assembly

1 × Oil Cup

1 × User Manual

1 × Wet Wipes

1 × Mounting Plate

1 × Perforated Cardboard

1 × Install Cardboard

1 × Installation Tips

1 × Air Outlet

1 × Exhaust Duct (Φ150)

2 × Aluminum Foil Tap

4 × Expansion Tubes (Φ10 × 50)

1 × Expansion Tubes (Φ6 × 25)

2 × Self-Tapping Screws (ST4 × 12)

1 × Self-Tapping Screws (ST4 × 16)

4 × Self-Tapping Screws (M4 × 20)

4 × Wood Screws (ST5× 50)

2 × Machine Screws (M4 × 8 × 2)

1 × Cleaning Scraper

Free standard shipping on all orders within the 48 contiguous United States.

Orders are processed within 1–2 business days.

Estimated delivery time is 3–8 business days.

Tracking information will be emailed once the order has shipped.

Orders are shipped via trusted carriers such as FedEx, UPS, or USPS.

We do not currently ship to Alaska, Hawaii, U.S. territories, P.O. Boxes, or international addresses.

Questions? View the full shipping policy here.

We offer a 45-day return window for items in original, unused condition with proof of purchase. Returns due to product defects or shipping errors will receive prepaid labels.

For personal reasons (e.g., size, design), customers cover return shipping. Some items (e.g., perishables, personalized goods) are non-returnable.

Large items must be inspected upon delivery; damages must be reported within 48 hours. No direct exchanges—please return and reorder.

Refunds are processed within 7–14 business days after approval.

Questions? View the full returns & refund policy here.

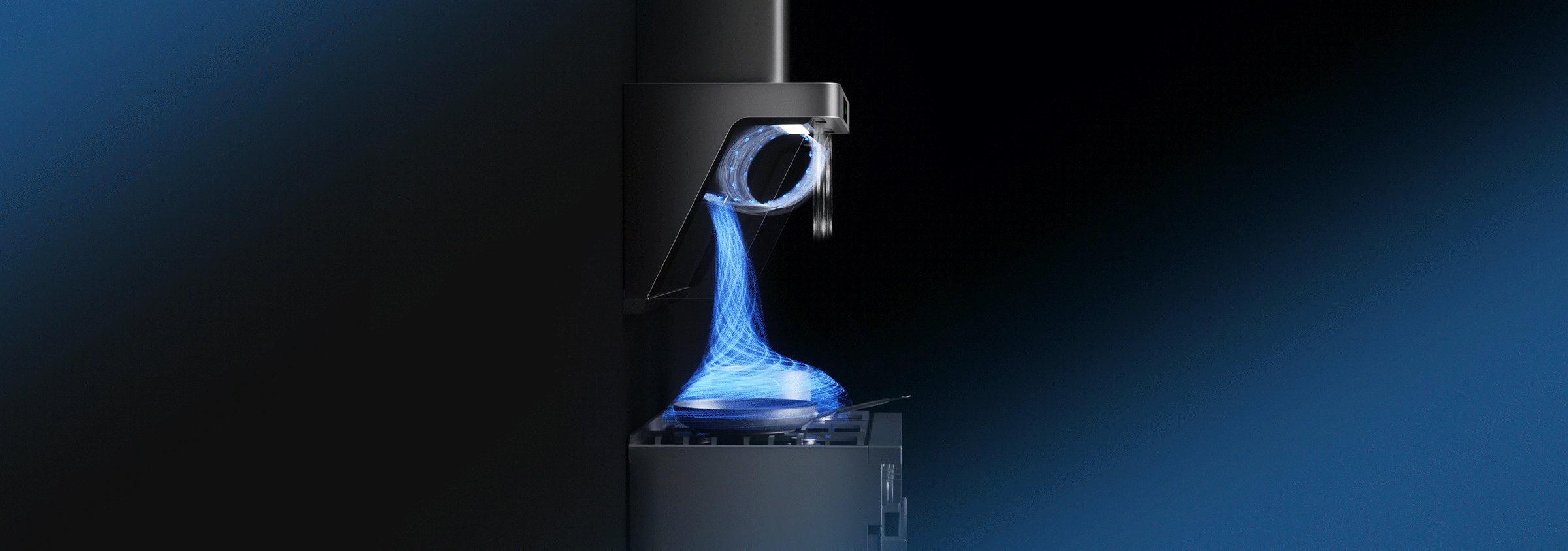

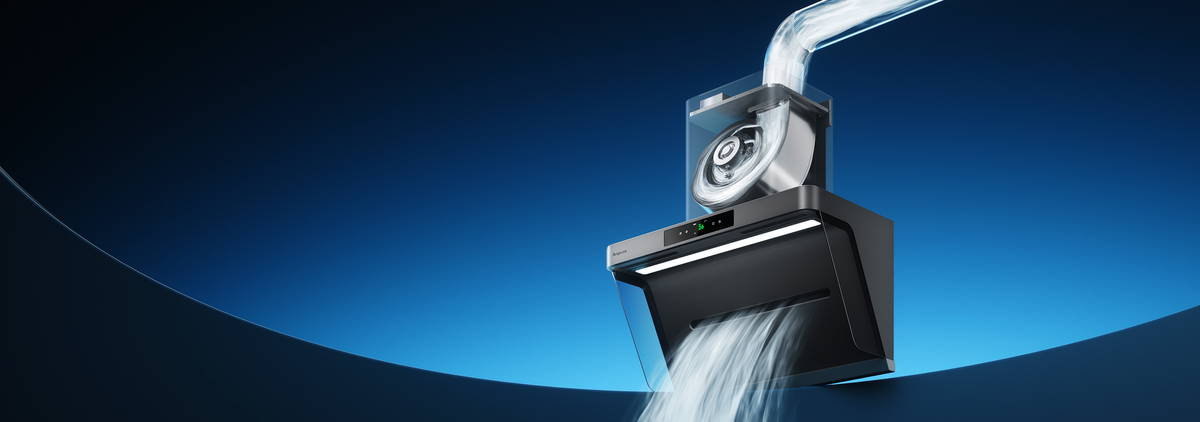

How IQV™Total Capture Works

Three precision-engineered airflow technologies work together to capture smoke at the source and keep it from escaping.

03.

Lock Smoke In Before It Reaches You

The top air curtain keeps smoke contained, creating a breathe-easy zone.

02.

Guide Smoke Where It Needs to Go

The Coanda Effect directs smoke toward the panel, guiding it upward along the surface and into the hood.

01.

Capture Smoke at the Source

Narrow intake geometry concentrates airflow into a high-speed zone,drawing smoke in at the pan.

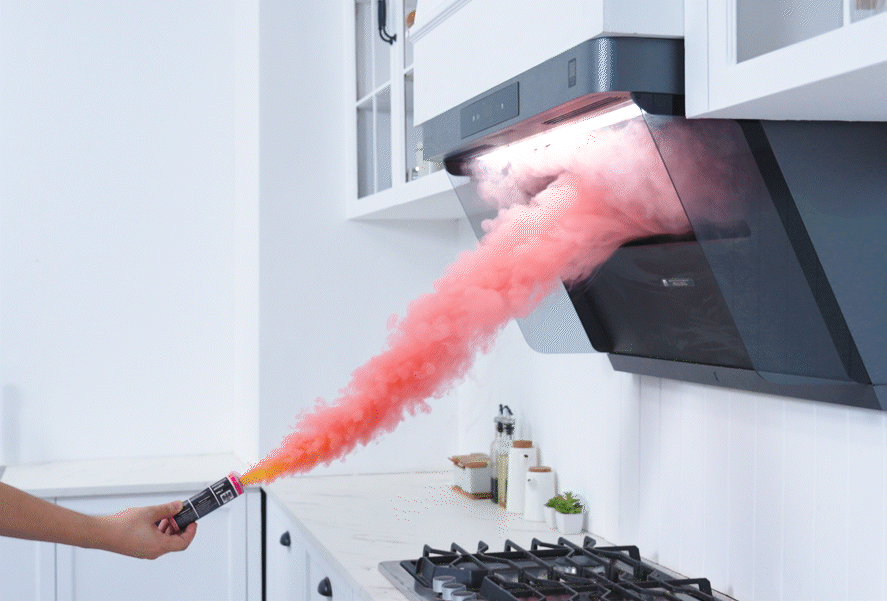

17m/s

High speed Airflow

The IQV™ range hood with the highest airflow speed to date.

Faster

Cleaner

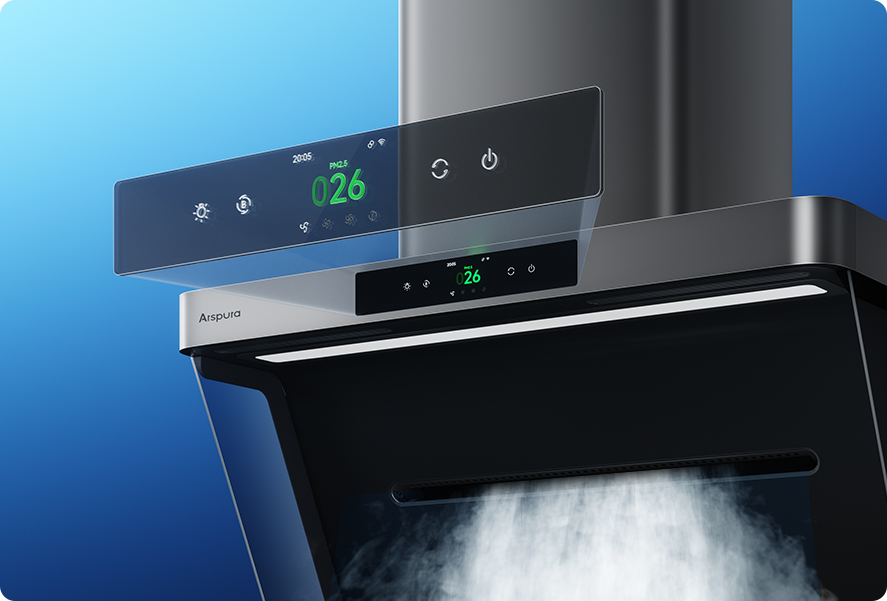

Visible Air Quality for Peace of Mind at Home

Not all cooking pollutants are visible. Real-time PM2.5 monitoring keeps you informed of changes in your kitchen air, so you know when the air is truly getting cleaner.

Fresh Air, Handled for You.

When whole-home air quality drops, the hood automatically starts ventilation to help refresh the air—without you having to lift a finger.

Visible Air Quality for Peace of Mind at Home

No Filters. No Disassembly. No Hassle

Self-cleaning blower helps prevent grease buildup,
even after 10 years of extended use, suction power remains virtually unchanged.

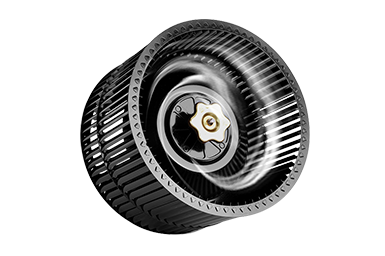

High-Speed Centrifugal Air-Film

500 G of centrifugal force, high-speed blower helps prevent grease build up.

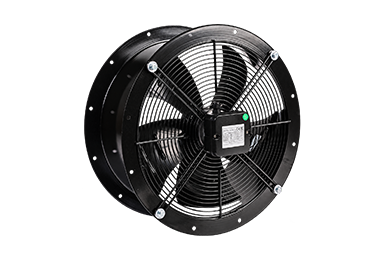

Conventional Blower

Low-speed rotation allows grease and cooking fumes to build up, shortening the blower's service life.

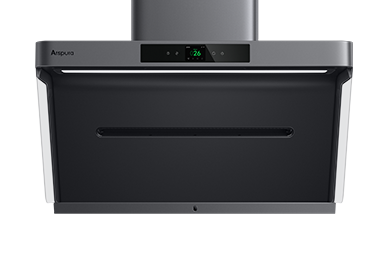

No Filters

No disassembly, no washing, more time for family.

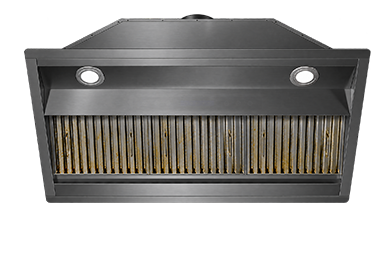

Traditional Filters

Difficult to remove and clean — an added kitchen chore.

Enhanced Silicone Surface

A grease-resistant, nonstick surface wipes clean in seconds.

Traditional Surface Material

Grease sticks easily and is hard to wipe away.

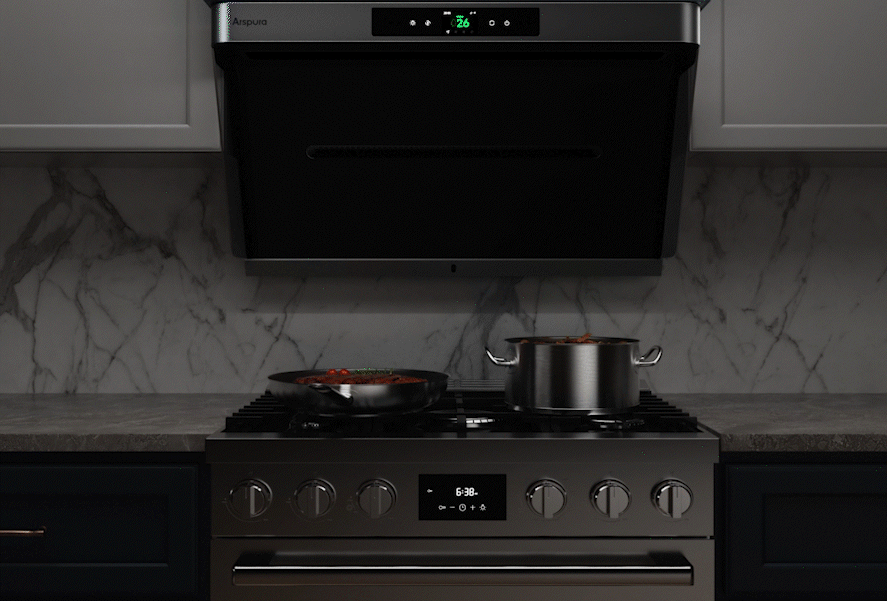

See the Sear.
Get It Right

High-CRI lighting reveals true-to-life colors, so you can see your steak clearly and get the perfect sear.

CRI90+

600+LUX

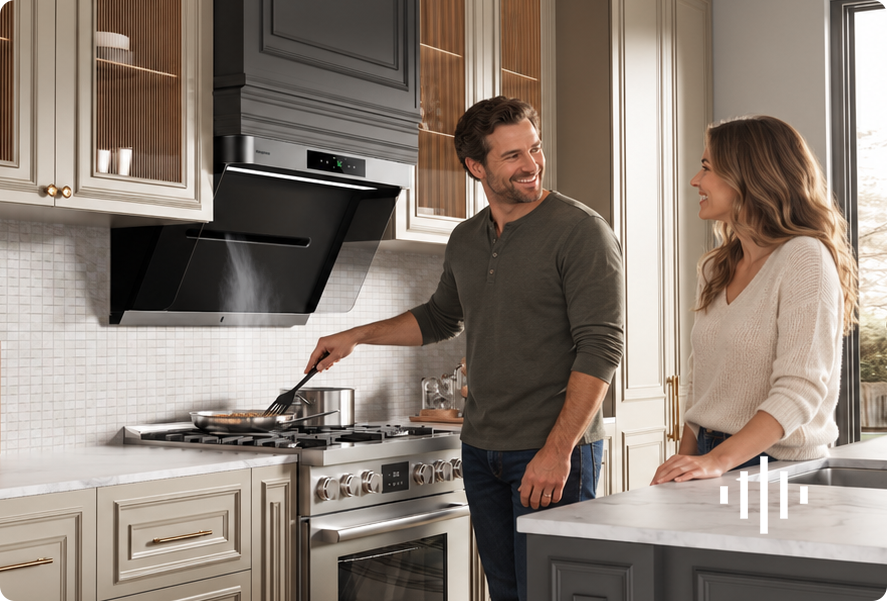

Let the Kitchen Be Quiet

Powerful ventilation at 62 dB(A), designed to keep cooking noise from taking over your space.

62dB(A)

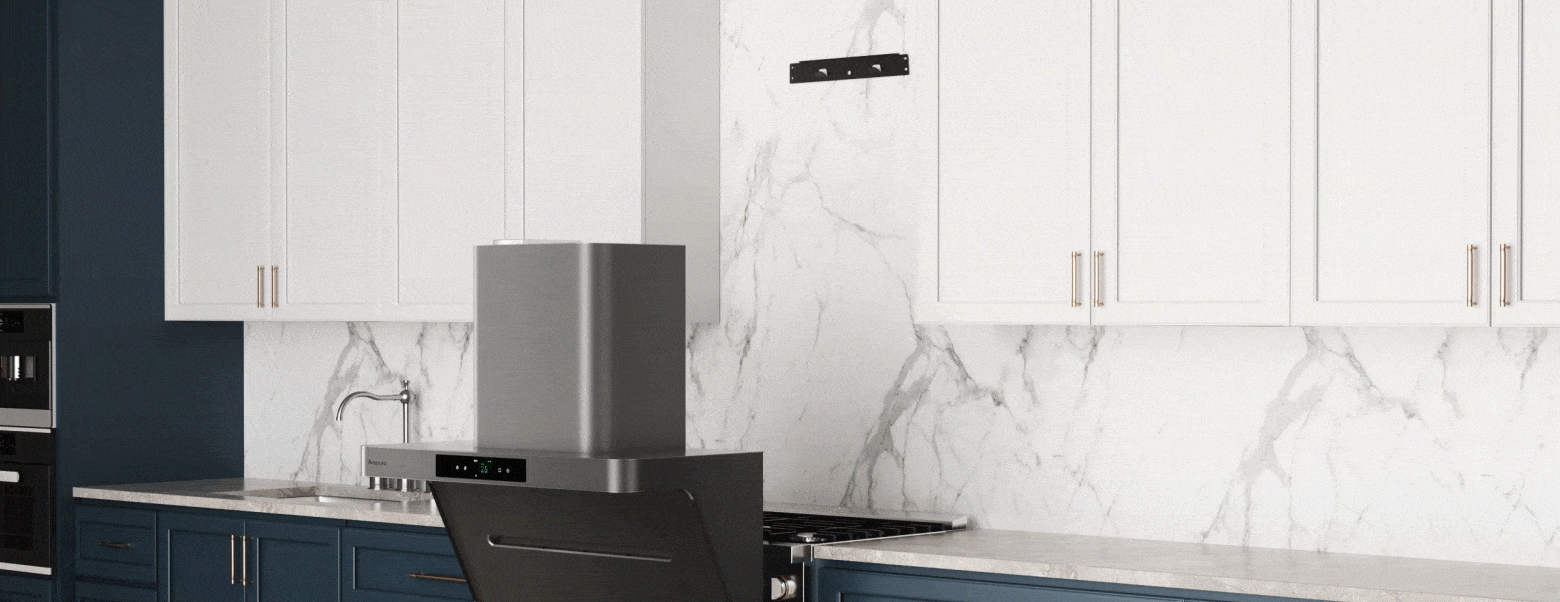

Seamless Body Design

One cohesive housing for a streamlined installation

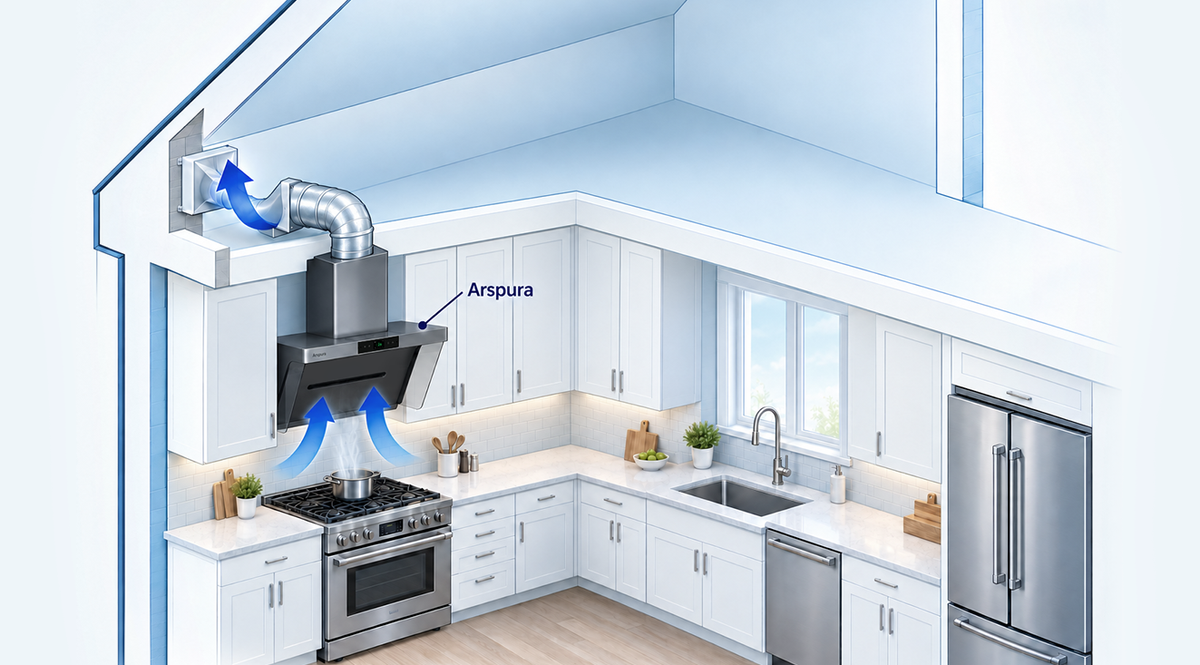

No MUA. No Extra Installation

Powerful smoke capture with one less system to plan, install, and pay for.

After

Before

More To Love

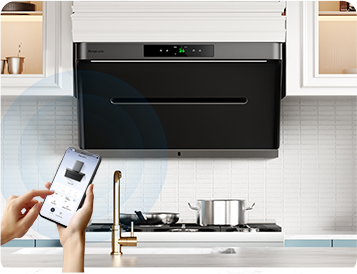

Smart Control, Your Way

Wave your hand to turn the hood on/off, or control it remotely with the Tuya Smart app.

36" Wide Coverage

A spacious 36-inch design is ideal for Most 2–6 burner cooktops.

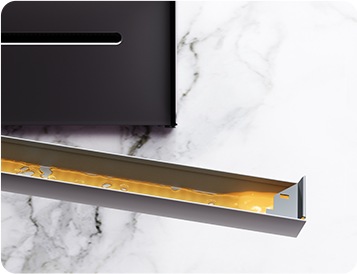

1L visibal oil cup

A clear, large-capacity 1L oil cup helps see the level at a glance and empty it only when needed.

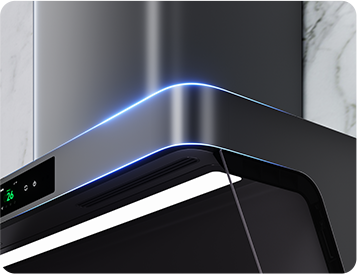

Soft Curves, Safer Cooking

Rounded edges help reduce bumps, scratches, and accidental contact during cooking, cleaning, and everyday use.

Find Your Perfect Arspura

Model

Buy Now

P1 Pro

Buy now

Buy Now

Buy now

F1 Plus

Buy Now

Suction Type

Side Suction

Top Suction

Top & Side Suction

Product Size

35 1/2×18 1/8×38 1/2″

35 4/16×17 15/16×35 15/16″

35 3/16×16 13/16×34 7/8″

29 1/2×16×30 5/8″

35 3/16×16×30 5/8’’

Color Options

Gray; Black

Gray

Max Air Flow Speed

13m/s

17m/s

14m/s

16m/s

Max Static Pressure

900Pa

1200Pa

750Pa

800Pa

Noise Level

67dB(A)

62dB(A)

59dB(A)

58dB(A)

Surface Coating

Silicone-Coated Material

Enhanced Silicone-Coated Material

Nano-Coated Frosted Glass

Black Crystal Tempered Glass

Lighting Power

10W

PM2.5 Monitor

✓

—

Smart App

—

Tuya Smart

Net Weight

27KG

31.8KG

33.5KG

23KG

25KG

purchase arspura p1 pro range hood with confidance

Installation Service

Service Details

Standard Range Hood Installation

Advanced Range Hood Installation

Average Market Price

Remove existing microwave

✔️

$50

Remove old hood and install new one

✔️

$299

Cabinet cutting or removing

❌

✔️

$200

Outlet relocation

❌

✔️

$150

First-floor exterior wall vent

❌

✔️

$300

Arspura Limited-Time Price

$199

$399

$999(Total)

Arspura P1 Pro Range Hood Specs

Overview

Product Name: Arspura P1 Pro Range Hood

Model: CXW-165-04CY-US-G/CXW-165-04CY-US-B

Material:
Sheet Metal with Powder-Coated Finish

Mount Type: Wall-Mounted / Under-cabinet

Vent Type: Ducted (Outside the House)

Compatibility: Fits most 2–6 burner cooktops

Performance

Airflow Range: 7m³/min - 13m³/min

Max Air Flow Speed: 17 m/s

Motor Type: BLDC (Brushless Direct Current)

Speeds: 4 levels

Time-Delayed Off: 1 minute

Noise Level (in semi anechoic chamber): 62 dB(A)

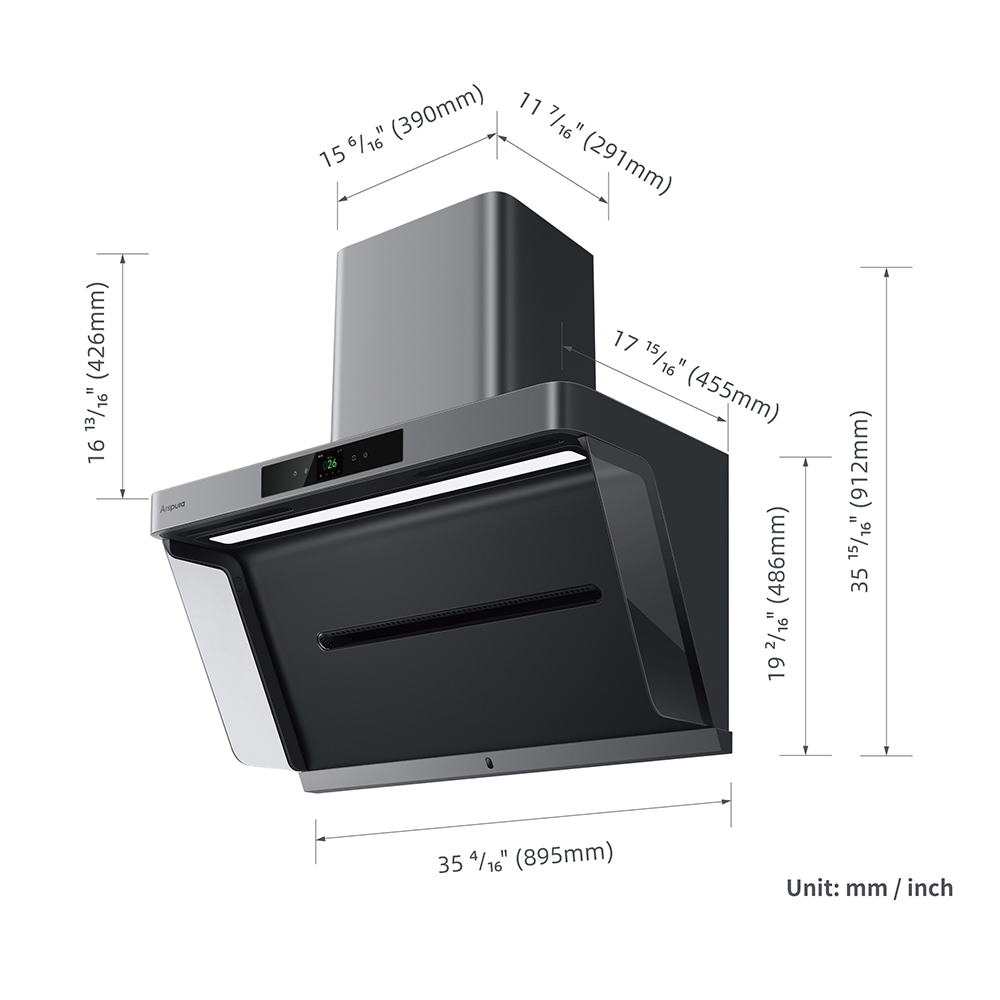

Dimensions

Size:
35 4/16×17 15/16×35 15/16″(895×455×912mm)

Weight: 31.8kg

Package Dimensions: 38 3/16x21 1/8x40 13/16"(970x535x1037mm)

Power

Main Motor Power: 165W

Rated Input Power (Total): 171W (incl. lighting)

Replaceable Light Power: 6W

Airflow

Exhaust

Air Duct Structure: Double-Layer Sealed Air Duct

Oil Fume Exhaust: Ducted exhaust via pipeline

Surface

Durability

Surface Coating:

Enhanced Silicone-Coated Material

Construction:
Easy-clean back panels, durable against heat and grease

Electrical

Power Supply(V/Hz)

120V/60Hz

Power Cable Length

39.4" (1.0 m)

Plug Type

U.S. 3-Prong Plug (NEMA 5-15P), Grounded

Power Cable

Specification

SJT 3x16AWG

Why People Love Arspura

In Real Kitchens

Let's do this!

Ask us anything or just say hi...

Frequently Asked Questions

What makes the Arspura P1 PRO different from a conventional range hood?

P1 PRO combines IQV™ Total Capture with 17 m/s high-speed airflow to capture cooking smoke before it spreads. Three coordinated airflow technologies capture smoke at the pan, guide it along the back panel, and help contain it beneath the hood. You get powerful smoke control, real-time air quality monitoring, and easier everyday cleaning in one streamlined design.

Is P1 PRO suitable for stir-frying, searing, and other smoky cooking?

Yes. P1 PRO’s 17 m/s airflow is designed to capture fast-rising smoke from high-heat cooking, including stir-frying, pan-frying, and searing. Four fan speeds let you adjust ventilation to suit your meal, while IQV™ Total Capture helps keep cooking fumes from spreading into the surrounding space.

Which Arspura range hood is right for my kitchen?

Choose based on your kitchen layout, cooking habits, and the features you value most:

P1 PRO: A great choice for frequent stir-frying and searing. It combines 17 m/s airflow, IQV™ Total Capture, real-time PM2.5 monitoring, automatic ventilation, and easy filter-free cleaning.
P2: Ideal for cooks who want a premium design, spacious cooking area, and powerful smoke capture for an open kitchen.
P1: Our best-value choice, offering flagship smoke-capture performance at clearance pricing. With IQV™ technology, real-time PM2.5 monitoring, and a filter-free design, it delivers powerful performance at an exceptional price while remaining inventory lasts.
F1: A practical choice for smaller kitchens, especially those with a 30-inch cabinet opening.
F1 Plus: A good fit if you want 36-inch coverage with straightforward operation and easy everyday maintenance.

Not sure which model will fit? Send our team photos and measurements of your cooking area, and we’ll help you find the right match.

How does the PM2.5 monitor help me while cooking?

Cooking can release fine particles that you cannot always see. P1 PRO’s real-time PM2.5 display lets you track changes in fine-particle levels in your kitchen air. It gives you a clearer picture of how your air changes during cooking and as ventilation clears the fumes.

Does P1 PRO have filters that need washing or replacing?

No. P1 PRO has no grease filters to remove, scrub, or replace. Its self-cleaning blower helps prevent grease buildup, and the grease-resistant silicone-coated back panel wipes clean easily. For routine care, wipe the accessible surfaces and empty the clear 1L oil cup as needed.

How loud is P1 PRO at the highest fan speed?

P1 PRO’s noise level is 62 dB(A) at the highest fan speed. For lighter cooking, choose a lower setting to reduce noise while keeping ventilation running. Its four fan speeds let you balance smoke capture and sound throughout meal preparation.

Will P1 PRO fit my kitchen and cooktop?

P1 PRO is a 36-inch range hood designed to accommodate most 2–6 burner cooktops. Before ordering, check the installation diagram against your cabinet opening, available clearance, and duct route. If you are unsure, send our team photos and measurements of your cooking area for help checking compatibility.

What makes P1 PRO easier to install?

P1 PRO features a one-piece housing and a hang-on mounting design to streamline installation. Its compact shroud also helps with cabinet planning. Check the installation guide for the required dimensions and preparation steps, or contact our team for help choosing an installation service.

What kind of lighting does P1 PRO provide?

P1 PRO features high-CRI lighting rated CRI 90+, helping food colors look natural and clear. With over 600 lux of illumination, it makes it easier to check browning, monitor a simmer, and see what is happening across your cooking surface.

Can I control P1 PRO without touching the panel?

Yes. Wave your hand to turn the hood on or off—especially useful when your hands are wet or greasy. You can also control it remotely through the Tuya Smart app after connecting the hood to Wi-Fi and completing setup.

What benefits come with the P1 PRO launch?

Shop P1 PRO with added peace of mind:

5-Year Warranty: Parts and labor are covered for the first 2 years, followed by 3 additional years of parts coverage.
45-Day Returns & Exchanges: Enjoy a 45-day window to request a return or exchange, subject to our return policy.
30-Day Price Protection — Exclusive Launch Benefit: If our price drops within 30 days of your purchase, contact us to request a refund of the eligible price difference.

Please see our warranty, return, and price protection policies for full terms and eligibility.
